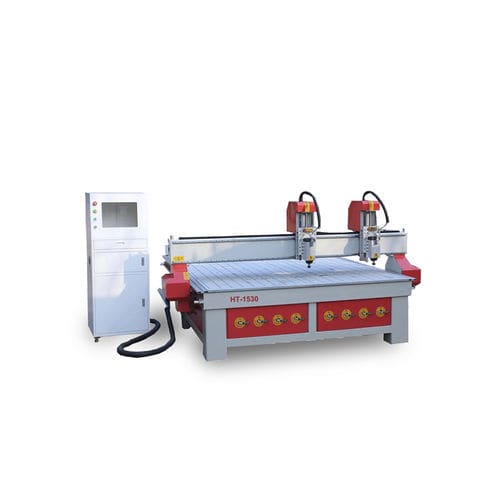

Two Heads CNC Router HT-1530
characteristic:
1.Water cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.
This machine with two heads and two spindle,it can work together or separately.
number : Description : parameter
1 : XYZ working area : 1500*3000*200mm
2 : Table size : 2180*3500mm
3 : XYZ travel positioning accuracy : ±0.025mm
4 : XYZ repositioning positioning accury : ±0.025mm
5 : Table surface : Bakelite vacuum table combiated T slot
6 : grantry : Steel
7 : drive system X-Y axis : Rack actuation
8 : drive system Z axis : Ball screw
9 : Spindle power : 3/5.5KW
10 : Max velocity : 50m/min
11 : Max working speed : 25m/min
12 : Spindle speed : 0-24000rmp
13 : work mode : step(optional servo)
14 : Working voltage : AC220/380V
15 : Command language : G code
16 : Interface : USB
17 : Operating system : DSP/Ncstudio/Mach3
18 : Flash memory : 128
19 : X-Y resolution : 0.025mm
