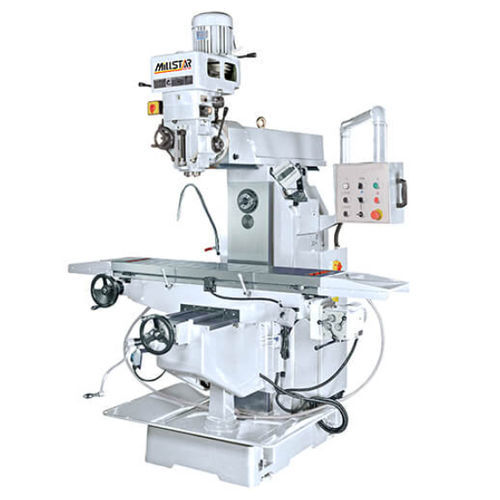

3-axis milling machine JY-26 series

verticalpolishingbelt drive

The main casting part is made of meehanite casting. The spindle run on high precision P4 class bearing. The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing. Milling head type: -Steps (SHB) Inverter (CHB) -Inverter type used YASKAWA VFD. Hardened and ground X,Y,Z axes slideway. Turcite-B coated on X Y ways. Square way design on Y and column slideway. X/Y axis double nut ball screw. Horizontal milling gear mechianism, maximum speed 1288/50HZ. Standard Accessories: Draw bar Tool box and tools Front finned bellows cover on Y axis Back chip cover on Y axis Working lamp Auto lubrication system X axis gear box Z Axis Rapid up/down Deluxe type operation panel Electric box Ball scerw (X/Y) Horizontal bracket x 2 set Horizontal arbor x 1 (25.4 or 27mm) Optional Accessories: Power drawbar Power feed(Y) Servo feed(X/Y) Gear box(Y) Digital readout (DRO) Adjustable Automatic lubrication system Coolant system(Pump 1/8 HP) Chip tray
