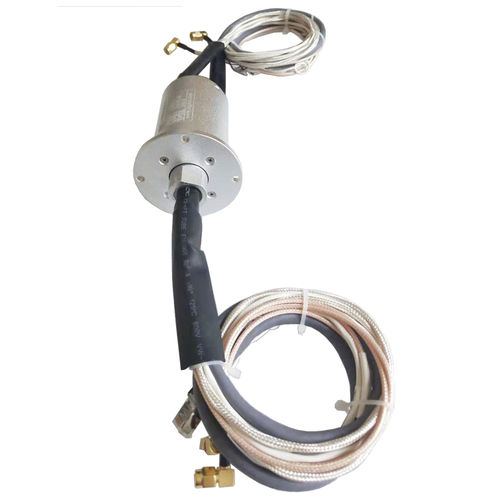

Rotary table slip ring DHS050-23
electro-opticalEthernetCAN bus

rotary table slip ring
rotary table slip ring
Add to favorites
Compare this product


Characteristics

Type
electro-optical, Ethernet, CAN bus, gigabit Ethernet, HD-SDI, PROFIBUS, HDMI-SDI
Applications
for rotary tables, for packaging, for medical equipment
Material
metal, aluminum alloy, stainless steel, gold
Other characteristics
compact, IP54, with gold contacts, high-performance, multi-channel, fiber brush
Voltage

Min.: 0 V

Max.: 20,000 V

240 V

Primary current

Min.: 0 A

Max.: 2,000 A

1 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 10,000 rpm
(62,832 rad.min-1)

300 rpm
(1,885 rad.min-1)

Number of channels

Min.: 1 unit

Max.: 200 unit

32 unit

Description

Item No.: DHS050-23 Application: Rotary Table Electric Parameters: 4 channel of power 1 group RS485 signal 1 group CANBus signal 1 group net signal 2 channel PAL video signal Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform. It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding.
