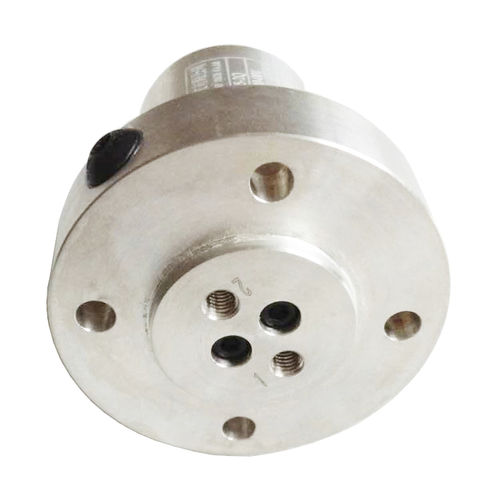

Water rotary joint DHS035-2Qfor compressed airfor hot oilfor gas
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for compressed air, for hot oil, for gas, for steam, for vacuum, for food industry applications, for sludge
- Number of passages
- multi-passage
- Material
- stainless steel
- Other characteristics
- screw-in, with seal, flange
- Rotational speed
Max.: 1,000 rpm
(6,283.19 rad.min-1)200 rpm
(1,256.64 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 10,000 bar
(145,038 psi)20 bar
(290 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 500 mm
(19.685 in)35 mm
(1.378 in)Min.: 20 mm
(0.787 in)
Description
Item No: DHS035-2Q
ID: 35mm
Working pressure: 0~2.0Mpa
Working speed: 0~200rpm
Path number: 2 in 2 out
Slip ring rotary joint is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.
It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding.
