Fiberglass technical fabric

industrial

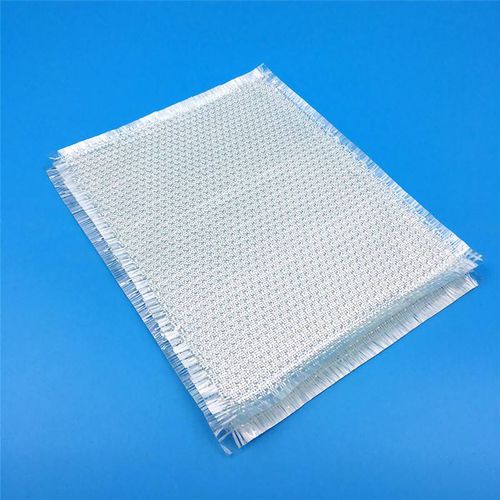

The 3-D spacer fabric consists of two bi-directional woven fabric surfaces, which are mechanically connected with vertical woven piles. And two S-shaped piles combine to form a pillar, 8-shaped in the warp direction and 1-shaped in the weft direction. The 3-D spacer fabric consists of two bi-directional woven fabric surfaces, which are mechanically connected with vertical woven piles. And two S-shaped piles combine to form a pillar, 8-shaped in the warp direction and 1-shaped in the weft direction. Product Characteristics The 3-D spacer fabric can be made of glass fiber, carbon fiber or basalt fiber. Also their hybrid fabrics can be produced. The range of the pillar height:3-50 mm, the range of the width:≤3000 mm. The designs of structure parameters including the areal density, the height and distribution density of the pillars are flexible. The 3-D spacer fabric composites can provide high skin-core debonding resistance and impact resistance and impact resistance, light weight. high stiffness, excellent thermal insulation, acoustic damping, and so on. FAQ of Beihai 3D fiberglass 3D woven fabric 1)How can I add more layers and other materials to the Beihai3D fabric? You can apply other materials (CSM, roving, foam etc) wet on wet on the Beihai 3D fabric. Up to 3 mm glass can be rolled on wet Beihai 3D before the end of the finished-time and the full spring-back force will be guaranteed. After the gel-time layers of superior thickness can be laminated.
