LED searchlight

reinforcedreinforcedoutdoor

Overview

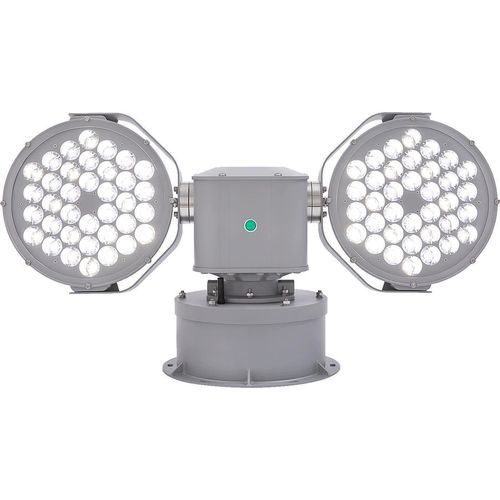

Dual-lamp marine LED searchlight with dimmable output and endless-rotation PAN and TILT. Designed for inland and ocean-going vessels, harbour tugs and workboats for search & rescue, port/marina/lock/dock approaches and loading/unloading operations.

Series
200W–600W series

Features

• PAN: endless rotation
• TILT: endless rotation
• Individual control for each lamp
• Wired control panel for the wheelhouse and wireless remote for on-deck use
• Multiple units can be controlled in unison from a single wired panel or remote
• Glass: reinforced tempered safety glass
• Available colour temperatures: 4000K, 5000K, 6500K
• Nominal LED lifetime: up to 50,000 h
• Warranty: 3 years

Standard housing colours

• Black — RAL 9011
• White — RAL 9016
• Grey — RAL 9006
• Other colours available on request

Additional product media
Specification brochure (PDF) available for the Marine LED Searchlight series. Video demonstration available (MP4).

Technical specifications

• Configuration: Dual / double lamp marine searchlight
• Series range: 200W–600W (product shown is the 380W dual-lamp variant)
• Dimmable LED output
• Endless rotation for both PAN and TILT axes
• Individual control per lamp; option for grouped control
• Control options: wired wheelhouse control panel and wireless remote control
• Optical protection: reinforced tempered safety glass
• Available colour temperatures: 4000K, 5000K, 6500K
• Nominal LED lifetime: up to 50,000 hours
• Standard housing colours: Black (RAL 9011), White (RAL 9016), Grey (RAL 9006)
• Warranty: 3 years
