filling machine for the pharmaceutical industry / for the cosmetics industry / for pasty products / for viscous products



  • Domain:

    for the pharmaceutical industry, for the cosmetics industry

  • Product applications:

    for pasty products, for viscous products, for viscous products, for viscous liquids

  • Container type:

    for tubes

  • Operational mode:


  • Type:


  • Throughput:

    60 p/h

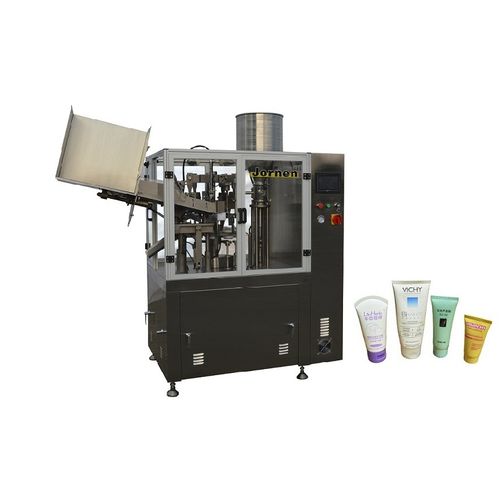

NF60A Automatic Tube Fillers are designed and engineered to produce outstanding quality and precision tube filling and sealing of plastic tubes with the output up to 60 tubes per minute. This machine is widely used in pharmaceutical, food, household chemical and cosmetic, etc., industries.
1. Automatically completes the actions of tube loading, washing, positioning, filling, sealing, coding, trimming and discharging tubes.
2. Tube positioning is control by BANNER Photoelectric Sensor
3. Equipped with Temperature Control and Separate Cooling System
4. No Tube, No Fill Alarm will go off!
5. Stainless Steel Construction and all parts contacted with material are high quality 316L stainless steel to meet GMP standard
6. Double Jacketed Temperature Control Hopper and Agitator are available as options
7. Suitable for all kinds of plastic composite pipes.
8. Provides high filling accuracy (±1%) for an extensive range of products, regardless of viscosity.
9. Mechanical drive system is easy to understand and maintain.
10. SIEMENS Touch Screen Control Technology
11. SIEMENS PLC Control System
12. SIEMENS Variable Speed Convertercontrol production speed
13. SIEMENS Electrical Components

Main Technical Parameters:
Max. Speed: Up to 60 tube/ min
Dosing range:5- 200 ml
Tube length:50 - 240 mm
Tube diameter:10 - 50 mm
Motor power:1.1 KW
Power for hot air: 3.3 KW
Plate: 9 stations
Dimensions:1900mmx1100mmx1800mm(LxWxH )
Weight: 850Kg
