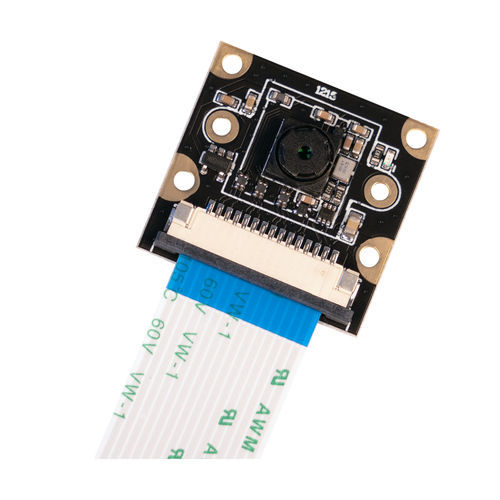

1920 x 1080 video camera RB-JT-V2-77

board

The camera module for the Raspberry Pi works with the well-known IMX219 chip and delivers best recordings in 8 MP quality at a viewing angle of 77°. Furthermore, it has the possibility to supply additional modules (e.g. lighting etc.) via its own power supply with up to 3.3 V voltage. Through additional mounting holes in the board, you can install the camera individually or mount other supplements. SENSOR IMX219 MEGAPIXEL QUANTITY 8 megapixel VIEW ANGLE 77° RESOLUTION 3280 x 2464 Pixel VIDEO RESOLUTION 1920 x 1080 @ 30 FPS INTERFACE Camera Serial Interface CSI CABLE LENGTH 150 mm FOCAL LENGTH 2.85 mm APERTURE (F) 2.0 DISTORTION < 1% LENS DIMENSION 6.5 mm x 6.5 mm MORE SPECIFICATIONS 4 holes for screws which provide 3.3 V power DIMENSIONS 25 x 24 x 6 mm WEIGHT 4 g
