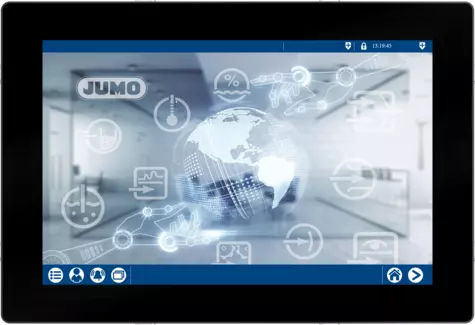

Touch screen panel PC variTRON 500 touch

TFT LCD10.1"7"

Description
JUMO variTRON 500 touch is based on the modular JUMO JUPITER platform. The integrated central processing unit combined with JUMO input and output modules forms a compact automation system with built-in PLC (CODESYS V3.5) and touchscreen visualization.

Short description
Touch panel with integrated central processing unit for industrial automation, available in 7" and 10.1" display sizes.

Availability
In stock

State
NEW

Variants / Options

• Display sizes: 7" variant, 10.1" variant
• Interface options: Ethernet (RJ45) or not used; optional additional Ethernet
• Extra code options: without type suffix; Programming app (incl. JUMO variTRON Temp)

Highlights

• Integrated HMI and PLC (CODESYS V3.5) with option for Node-RED
• Support for multiple fieldbus and industrial Ethernet protocols
• Configurable process and plant visualizations via touchscreen

Technical data (summary)

• Interfaces: 2× USB host, 1× Ethernet (plus optional additional Ethernet), system bus; optional 2× RS232/RS485
• Operation: TFT color touch panel available in 7" and 10.1"
• Displays: Connectable displays in portrait or landscape formats; support for CODESYS TargetVisu, CODESYS Remote TargetVisu and CODESYS WebVisu
• PLC option: IEC 61131-3 (CODESYS V3.5) and Node-RED support
• CPU: 800 MHz quad-core processor
• Scalability: Up to 30 connection modules and multiple displays can be connected
• Control capacity: More than 120 control loops
• Fieldbus/communication: PROFINET IO-Controller, MODBUS RTU/TCP, EtherCAT master, OPC UA and other fieldbus systems
• Special functions: Combination of touch panel and central processing unit; multi-station visualization; easy software integration and flexible system integration
• Recording and evaluation: Optional app for multi-system process data acquisition, recorder screen and visualization on the touch panel, individual batch reports and manipulation detection

Customer benefits

• All-in-one solution for compact automation tasks
• Wide connectivity to field devices and PLC-level components
• Flexible visualization and control configuration for customer-specific processes
• Scalable system architecture to adapt to different plant sizes
• Faster commissioning through intuitive touchscreen operation

Specifications / technical data

• Platform: JUMO JUPITER modular platform
• Integrated PLC: CODESYS V3.5 (IEC 61131-3), Node-RED optional
• Processor: 800 MHz quad-core CPU
• Interfaces: 2× USB host, minimum 1× Ethernet; system bus; optional 1× additional Ethernet, 2× RS232/RS485
• Display: TFT color touch panel, 7" or 10.1"
• Supported formats: Portrait/landscape; 4:3 and 16:9
• Expandable modules: Up to 30 connection modules and additional displays
• Control loops: >120
• Fieldbus/protocols: PROFINET IO-Controller, MODBUS RTU/TCP, EtherCAT master, OPC UA
• Optional features: Recorder and process data evaluation app, programming app (incl. JUMO variTRON Temp)
