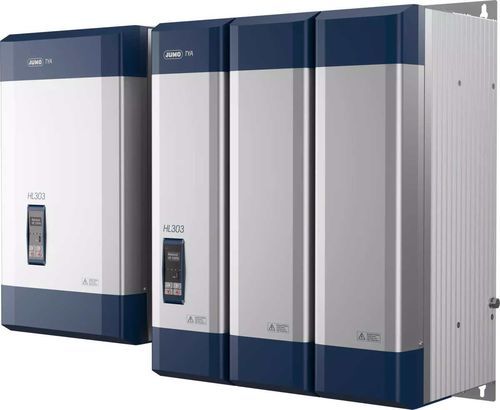

Three-phase phase angle controller JUMO TYA HL303

Overview
The JUMO TYA HL303 is a three-phase thyristor controller designed for controlling non-linear loads with load currents from 300 to 800 A. Its compact footprint and top-bottom wiring make it suitable for space-constrained control cabinets. Integrated data logging and an oscilloscope support process monitoring and troubleshooting, while the setup program with wizard simplifies commissioning.

Highlights

• Optional load management for up to 24 zones
• Versatile communication protocols (USB, Modbus RTU, optional PROFINET, EtherNet/IP, Modbus TCP, EtherCAT)
• Suitable for all load types (resistive, inductive, non-linear)

Customer benefits at a glance

• High flexibility: multiple control modes (U, I, P, U², I²) and many fieldbus options
• Reduced SKUs: one device covers a wide range of applications
• Energy savings through optional load management and optimized control
• Improved process reliability via data logging and integrated oscilloscope
• Space-saving installation due to compact design and efficient wiring

General technical data
Load currents: 300 to 800 A
Load voltage: 230 to 690 V
Control types: U, I, P, U², I²
Approvals: cUL 508 (300–700 A, up to 600 V), UL (from 800 A up to 600 V)
Interfaces: USB (Setup), Modbus RTU; optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT
Inputs: 2 digital inputs, 2 analog inputs (0–10 V, 0–20 mA, potentiometer)
Special features: Compact design; top-bottom wiring; setup program with wizard; integrated oscilloscope; remote control option; practical operator panel; optional load management up to 24 zones; data logging with SD memory

Technical specifications

• Model: JUMO TYA HL303
• Brand: JUMO
• Application range (load current): 300 to 800 A
• Load voltage range: 230 to 690 V
• Control modes: Voltage (U), Current (I), Power (P), U², I²
• Approvals: cUL 508 (300–700 A, up to 600 V), UL (from 800 A up to 600 V)
• Interfaces: USB (Setup), Modbus RTU; optional PROFINET, EtherNet/IP, Modbus TCP, EtherCAT
• Inputs: 2 digital, 2 analog (0–10 V, 0–20 mA, potentiometer)
• Optional load management for up to 24 zones
• Data logging with SD memory and integrated oscilloscope
• Compact design with top-bottom wiring
