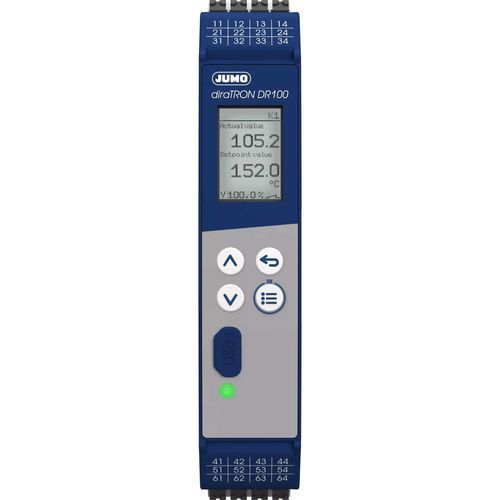

Fixtured multi-function controller JUMO diraTRON DR100

Overview
The universal DIN-rail controller enables precise control of temperature, pressure, and many other measurands. The device can be adapted to different process requirements with configurable measurement inputs and control options as a two-point, three-point, modulating, or continuous controller. A plain text display ensures simple and clear operation which makes the JUMO diraTRON DR100 an important tool in process control.

Highlights

• Autotuning
• Ramp function
• Limit value monitoring function

Customer benefits at a glance

• Universal control of a wide range of measurands thanks to configurable measurement inputs
• Multifunctionality for a wide range of applications
• High level of control quality
• Smart startup thanks to autotuning
• Clear display with plain text indication

Technical data
General technical data
Measurement inputs: Universal analog input for: (double) RTD temperature probes; resistance transmitters; resistance potentiometers; (double) thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; digital input; optional: 2nd digital input
Outputs: Digital output; relay (changeover contact); optional: 2nd relay (changeover contact); analog output
Display: 64 × 96 pixel dot matrix LCD display with background lighting and plain text display
Interfaces/protocols: USB (setup); optional: RS485 (Modbus)
Controller type: Two-state controller; three-state controller; modulating controller; continuous controller
Mounting: DIN-rail mounting
Voltage supply: DC 24 V, -20/+25 %; AC 110 to 240 V -15/+10 %, 48 to 63 Hz
Special features: Autotuning; ramp function; limit value monitoring function; temperature difference measurement; continuous controller with analog output (optional); connection to up to 10 devices via backplane bus for DC voltage supply and RS485 interface (optional)
Approvals: cULus

Specifications / technical data

• Measurement inputs: Universal analog input for: (double) RTD temperature probes; resistance transmitters; resistance potentiometers; (double) thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; digital input; optional: 2nd digital input
• Outputs: Digital output; relay (changeover contact); optional: 2nd relay (changeover contact); analog output
• Display: 64 × 96 pixel dot matrix LCD display with background lighting and plain text display
• Interfaces/protocols: USB (setup); optional: RS485 (Modbus)
• Controller type: Two-state controller; three-state controller; modulating controller; continuous controller
• Mounting: DIN-rail mounting
• Voltage supply: DC 24 V, -20/+25 %; AC 110 to 240 V -15/+10 %, 48 to 63 Hz
• Special features: Autotuning; ramp function; limit value monitoring function; temperature difference measurement; continuous controller with analog output (optional); connection to up to 10 devices via backplane bus for DC voltage supply and RS485 interface (optional)
• Approvals: cULus
