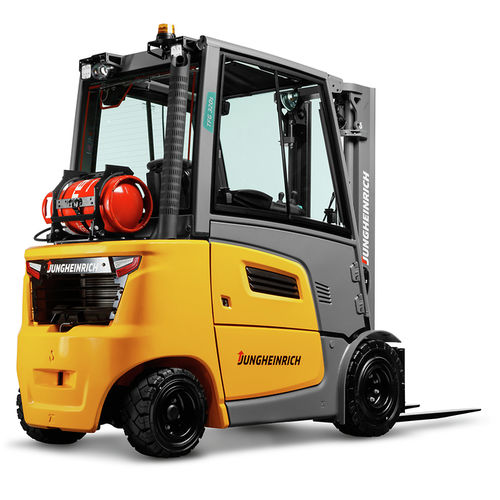

LPG forklift TFG 3xxs series
ride-onhandlingindustrial

LPG forklift
LPG forklift
LPG forklift
LPG forklift
LPG forklift
LPG forklift
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, industrial, indoor, outdoor
Other characteristics
4-wheel
Carrying capacity

1,600 kg, 2,000 kg (3,527.4 lb)

Lifting height

Max.: 7,500 mm (295.28 in)

Min.: 2,900 mm (114.17 in)

Load center distance

500 mm (19.7 in)

Weight without load

2,872 kg, 3,075 kg, 3,210 kg (6,331.7 lb)

Axle loading with maximum load front

3,870 kg, 4,260 kg, 4,580 kg (8,531.9 lb)

Axle loading with maximum load rear

605 kg, 620 kg, 635 kg (1,333.8 lb)

Axle loading without load front

1,330 kg, 1,350 kg, 1,380 kg (2,932.1 lb)

Axle loading without load rear

1,542 kg, 1,725 kg, 1,830 kg (3,399.5 lb)

Height of mast when lowered

2,205 mm, 2,212 mm (86.8 in)

Free lift

150 mm (5.9 in)

Overall height with mast raised

3,885 mm, 3,907 mm (153 in)

Height to top of overhead guard

2,185 mm (86 in)

Seat height

1,130 mm (44.5 in)

Tow couplig height

380 mm (15 in)

Fork carriage width

980 mm (38.6 in)

Ground clearance under mast with load

90 mm, 95 mm (3.5 in)

Ground clearance at center of wheelbase with load

120 mm (4.7 in)

Turning circle radius

2,095 mm, 2,123 mm (82.5 in)

Travel speed

22 km/h (13.7 mph)

Lifting speed

0.6 m/s (2 ft/s)

Vitesse d'abaissement

0.5 m/s, 0.6 m/s (1.6 ft/s)

Rated output

32.9 kW (44.7 hp)

Rated speed

2,400 rpm (15,079.6 rad.min-1)

Cubic capacity

1,868 cm³ (63.2 US fl oz)

Maximum operating pressure

250 bar (3,625.9 psi)

Oil flow

40 l/min (10.6 us gal/min)

Noise level

78 dB

Description

The robust and versatile Series 3s hydrostatic forklifts are ideal for tough applications, both indoors and outdoors: Whether fast loading and unloading in reversing operation or precise working on ramps and slopes – the modern hydrostatic drive technology stands for optimised energy efficiency with maximum throughput. Especially in challenging applications with attachments, the increased oil flow volume of the working hydraulics ensures maximum productivity, while powerful and maintenance-friendly Kubota industrial motors guarantee high driving dynamics with low exhaust emissions. Safe and comfortable working is made possible by the panoramic roof made from laminated safety glass for perfect all-round visibility, a 4-inch display with five optional travel programs, as well as assistance systems which can be easily connected via interface – for highly efficient working in any situation. • Hydrostatic drive concept for maximum performance. • Simple connection of various assistance systems. • Adaptable operating concept for maximum flexibility. • Easy to service with low maintenance requirements. • Excellent all-round view and best ergonomics for efficient working. Features Advanced drive technology • - Innovative hydrostatic drive concept for optimised energy efficiency with maximum throughput and gradeability. • - Powerful, state-of-the-art Kubota industrial motors which comply with tier 5 exhaust emissions by means of regulated 3-way catalytic converters. Intelligent operator assistance systems • - addedVIEW camera systems with 360° all-round visibility. • - liftCONTROL for reducing the tilt speed at defined lift heights.

Catalogs

No catalogs are available for this product.

See all of JUNGHEINRICH‘s catalogs
