Stepper motor controller SMC20

ACDC3 digital inputs

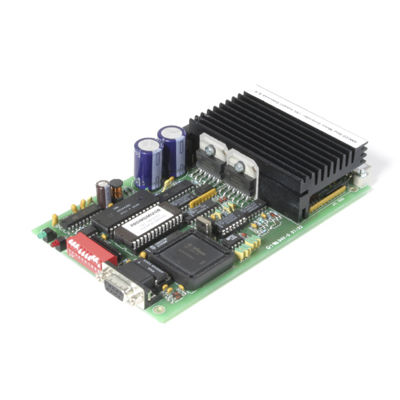

Stepper Motor Controller type SMC20 is a low-cost controller for step motors. SMC20 has ½Kb of memory and can either be used as a stationary unit or connected to a terminal or a PC via an RS232C/V24 interface. Programming is very simple using JVL´s programming software, MotoWare. The Controller includes a built-in driver which can supply up to 2.5 Amp. per motor phase. It has 3 digital inputs and 3 digital outputs as well as 6 analogue inputs. The motor driver is short-circuit protected. Motor current is disconnected in the event of a short-circuit. • Power supply 15-45VDC • RS232C/V24 communication. • Simple programming. • Max. operating frequency 15kHz. • RS232 interface bus. • Connection of up to 7 controllers on the same RS232 interface bus • Baud rate of 110 - 9600. • Small physical dimensions: h34 x w100 x l160 mm • Thermal protection. • 3 User inputs. 6 Analogue inputs. • 1 Stop input. 3 User outputs. • Connection via DIN41612 connector
