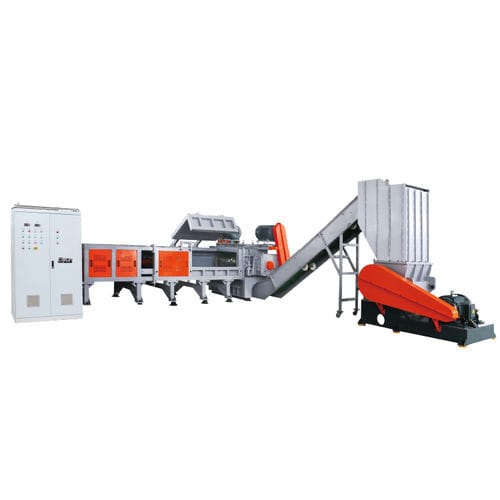

Single-shaft shredder DYSSQ sereis
for wasteplasticrotary shear

single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
Add to favorites
Compare this product


Characteristics

Number of shafts
single-shaft
Application
for waste, plastic
Other characteristics
rotary shear, with conveyor, heavy-duty
Power

44,000 W, 74,000 W

Output

Min.: 300 kg/h
(661 lb/h)

Max.: 3,000 kg/h
(6,614 lb/h)

Rotor diameter

400 mm, 630 mm
(16 in, 25 in)

Rotational speed

37 rpm, 74 rpm
(232 rad.min-1, 465 rad.min-1)

Description

In order to be environmentally friendly and suitable for different production requirements and crushing objects, DYUN launched the DYSSQ light shredder. It is suitable for shredding and recycling of gates, plastic thick board, building template, plastic films and various blow-molding containers produced during injection molding, blow molding and extrusion. According to the different feeding methods and recycling of the site, conveyors and crushers can be equipped. This shredder has low-speed rotary cutter, and is of low noise, high output and more energy saving.
