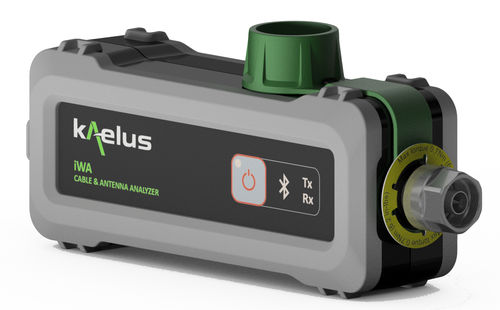

Cable fault locator iWA series

The iWA series Cable & Antenna Analyzer is the evolution of our well respected and very reliable iVA platform. The iWA extended frequency range to 4GHz supports Land Mobile Radio (LMR) and 5G midband networks while enabling users to accurately measure and locate VSWR/return loss faults in their RF infrastructure. In addition, the Bluetooth wireless connectivity allows unprecedented measurement flexibility. The iWA is an ergonomically designed, rugged battery operated module that is remotely controlled with any tablet, smartphone or laptop computer. FEATURES Redefining site certification sweep testing, dramatically reducing test time on site Simple to operate, highly intuitive software user interface with the unique ability to generate and complete the test report onsite with no post-processing or additional data entry required Kaelus Unify software available for Android, iOS and Windows allows Kaelus iPA(s) and iWA(s) to combine your RL data with your PIM data into a single report. Geotag each test point, insert a Google Maps® snapshot directly into the report Instrument controlled via robust Bluetooth connection. Connect directly to the device under test; eliminates the need for a phase stable cable in most cases
