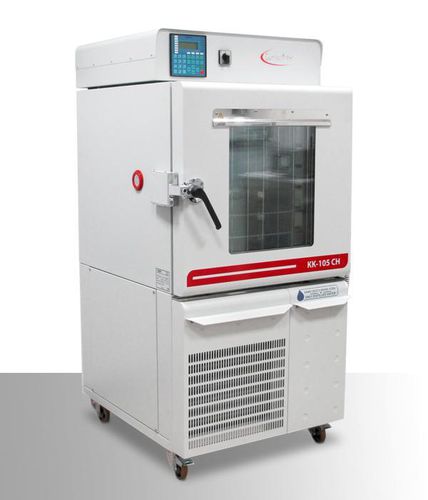

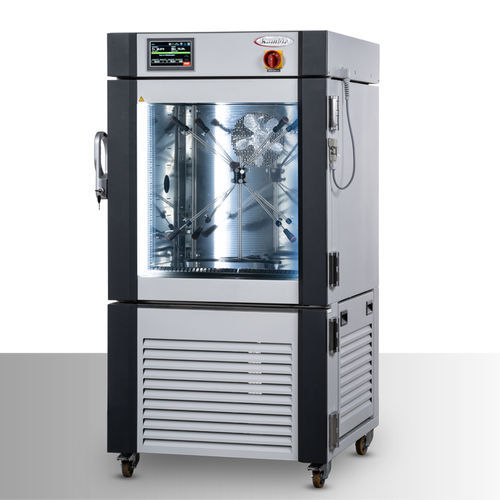

Climate chamber KK serieshumiditytemperatureaging
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- aging, temperature stability, stress, for environmental simulation
- Product applications
- for materials testing, for temperature sensors, for humidity sensor
- Application domain
- laboratory, for metrology laboratories
- Options and accessories
- with window, with temperature and climatic control, temperature regulator, with sample preparation
- Other characteristics
- low-temperature, ultra-low-temperature
- Capacity
Min.: 60 l
(15.85 gal)Max.: 1,000 l
(264.17 gal)- Temperature
Min.: -75 °C
(-103 °F)Max.: 180 °C
(356 °F)- Interior length
Min.: 410 mm
(16.14 in)Max.: 1,000 mm
(39.37 in)- Interior height
Min.: 475 mm
(18.7 in)Max.: 1,035 mm
(40.75 in)- Interior depth
Min.: 350 mm
(13.78 in)Max.: 1,000 mm
(39.37 in)- External length
Min.: 835 mm
(32.9 in)Max.: 1,235 mm
(48.6 in)- External height
Min.: 1,223 mm
(48.15 in)Max.: 1,986 mm
(78.19 in)- External depth
Min.: 796 mm
(31.34 in)Max.: 1,693 mm
(66.65 in)
Description
Key features
Available variants / Technical data sheets
Technical data sheet CLIMATIC CHAMBER KK-CH 2026 — Standard (+5 °C … +180 °C)
Technical data sheet CLIMATIC CHAMBER KK-CHLT 2026 — Low temperature (−40 °C … +180 °C)
Technical data sheet CLIMATIC CHAMBER KK-CHULT 2026 — Ultra low temperature (−75 °C … +180 °C)
Applications
Gallery
Multiple product images available: chamber exterior and interior views, open door, shelving, observation window, access ports, control panel and internal lighting.
Video
Product overview and model presentation videos available (YouTube).
Technical specifications
- Temperature range: −75 °C … +180 °C
- Controlled temperature and relative humidity test profiles
- Reproducible material and product resistance testing
- Maintains stable temperature and relative humidity
- Sample conditioning prior to further tests
- Calibration capability for data loggers and sensors
- Metrology-grade performance for traceable results
- Accelerated ageing and stress testing
Available variants / Technical data sheets
Technical data sheet CLIMATIC CHAMBER KK-CH 2026 — Standard (+5 °C … +180 °C)
Technical data sheet CLIMATIC CHAMBER KK-CHLT 2026 — Low temperature (−40 °C … +180 °C)
Technical data sheet CLIMATIC CHAMBER KK-CHULT 2026 — Ultra low temperature (−75 °C … +180 °C)
Applications
- Material temperature and relative humidity resistance testing
- Product performance and endurance testing
- Sample conditioning before laboratory or field tests
- Calibration of data loggers and environmental sensors
Gallery
Multiple product images available: chamber exterior and interior views, open door, shelving, observation window, access ports, control panel and internal lighting.
Video
Product overview and model presentation videos available (YouTube).
Technical specifications
- Overall temperature range: −75 °C … +180 °C (dependent on model)
- Model variants: Standard, Low Temperature, Ultra Low Temperature
- Standard variant: +5 °C … +180 °C
- Low Temperature variant: −40 °C … +180 °C
- Ultra Low Temperature variant: −75 °C … +180 °C
- Environmental simulation with defined temperature and humidity profiles
- High reproducibility for durability and product testing
- Suitable for sample conditioning and sensor calibration
- Designed for accelerated ageing and stress tests
