Pallet turner
electricfixed

pallet turner
pallet turner
pallet turner
pallet turner
pallet turner
pallet turner
pallet turner
Add to favorites
Compare this product


Characteristics

Operation
electric
Applications
pallet
Other characteristics
fixed

Description

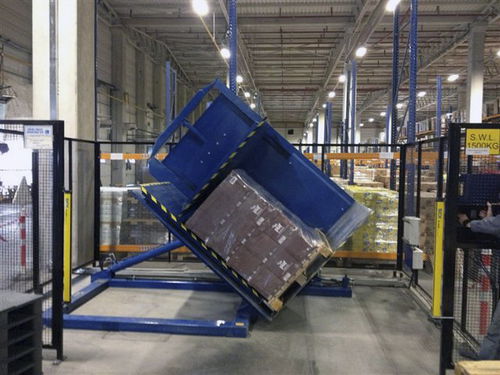

The 95º pallet turner clamps with a guide plate and turns 95 degrees. The machine is loaded at ground level by (electric) pallet truck or forklift. It is suitable for containers such as crates, frozen products, boxes and other break-resistant goods. degree from 95°, loading capacity 1.500 kg, opening from 1.090 to 2.160 mm Your advantages • Cost-effective entry-level model • Time saving due to short swiveling process • Ideal when goods need to maintain position (barcode) • Quick and easy change of pallets • Can be loaded at floor level • Easier access to damaged goods • Cost reduction of rental pallets • Easy reloading from wooden to plastic or aluminum pallets • Productivity increase Version • Maximum load capacity 1.500 kg • Clamps with a guide plate • Turns 95 degrees • Hydraulically movable clamping table • Loading at floor level • For loads below 800mm height, additional pallets can be used for jacking up • A 2 meter high safety guard is supplied as a safety kit Dimensions • Overall dimensions W 3,000 x H 2,300 x D 1,500 mm • Jaw mounting width for loads from 800 to 2,000 mm height • Clamping table W 1,200 x D 1,200 mm
