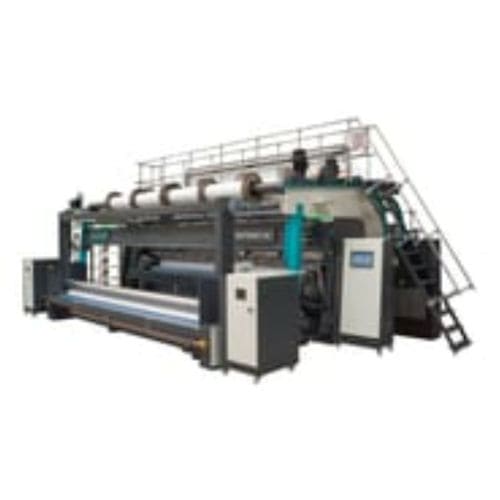

Raschel warp knitting machine WEFTTRONIC® II RS

high-speedwith weft insertion

High-performance warp-knitting machine with course-oriented weft-insertion for the production of medium-weight fabrics Benefits High productivity High operating reliability and safety Wide range of applications Technical Details Working width: 138", 184", 213", 268" (for all widths 2" extension possible) Working width reduction: Up to 60" for all widths Gauge: E 9, E 10, E 12, E 14, E 16, E 18, E 22, E 24 – other gauges on request Weft-insertion system: Yarn laying carriage with 30 ends Bars / knitting elements: Individual needle bar with compound needles, slider bar with plate slider units (½"), sinker bar with compound sinker units, two guide bars with guide units. No. of warp beams / guide bars: One or two guide bars – max. 32" flange diameter for warp beams One bar for filler threads – max. 40" flange diameter for warp beams Pattern drive: Pattern disc Take-up device: Two separately driven three-roller systems Batching device: Modular batching system with surface winding Optional equipment: Pressure roller Duo-function (both carrier rollers separately driven) Traversing device Dancer control Batch roll ejector Carrier rollers with reinforced wall thickness Applications Indutech Protech Billboards Cutting protection Roofing
