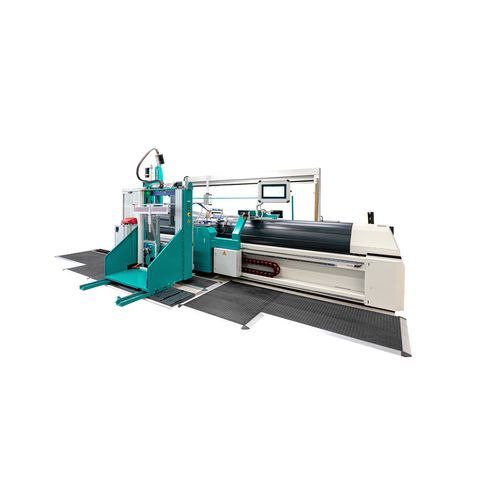

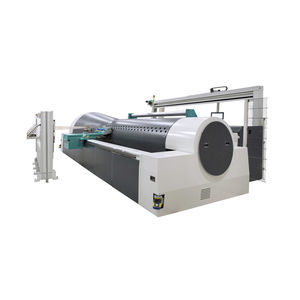

Sectional warping machine NOV-O-MATIC (NOM)

Automatic sectional warping machine for 800 mm or 1000 mm beam diameter Benefits Fully automated sectional warping process up to 1000 m/min warping speed Sectional warper that combines laser supported layer thickness control with an evener roller Integrated automatic leasing separation for higher working efficiency Technical Details Maximum number of creel ends 800 Yarn sheet tension range beaming 600 N - 4,000 N Beaming speed max. 200 m/min Warp beam diameter max. 800 mm / 1,000 mm Warping speed max. 1,000 m/min Working width up to 3,600 mm Machine Features Higher working efficiency Automatic sectional warping machine for processing of medium sized sample and production warps. The fully automated sectional warping process up to 1000 m/min warping speed guarantees a higher working efficiency and less production costs. Precise and automatic leasing separation A sensor-monitored and fully automated drawing-in and placing of the separating cords during the warping process, ensures highest quality in leasing/sizing separation. High-quality warps High-quality warps as a result of laser-monitored circumferential control in conjunction with layer thickness control and automated feed determination by means of laser-controlled feed regulation. The evener roller ensures a compact and equal band build-up. Applications Shirt fabrics Mattresses Suit fabrics Automotive Seats Outerwear Upholstery fabrics and velour Terry towelling and cleaning textiles
