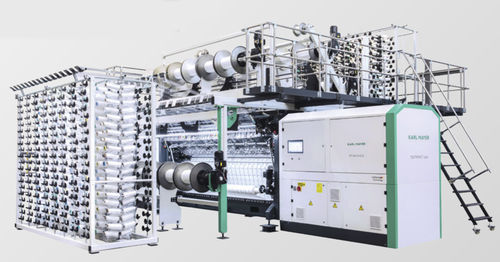

Raschel warp knitting machine MT 84/1/40 S

multi-barjacquard

New TEXTRONIC® Multibar Jacquard Raschel machine for the production of high-quality elastic and rigid lace Benefits Two split Jacquard bars and one guide bar make stitch forming Two guide bars at back side able to make counterlapping PB2-11 can be replaced by GB1 Super multi-functional and flexible machine Able to produce exceptionally light, transparent and strong ground fabric Better price–performance ratio Short set-up times and easy handling High operation reliability and low maintenance Technical Details Working width 134" Gauge E 24, E 28 Yarn let-off device Five electronically controlled yarn let-off gears for ground guide bars and Jacquard bars; six position optional Pattern device EL Electronic guide bar control: ground guide bars and pattern guide bars (string bars) Fabric take-up Electronically regulated fabric take-up, driven by geared motor, consisting of four rollers covered with black grip tape Applications Romantic Floral Pattern Lively Seeweed Pattern
