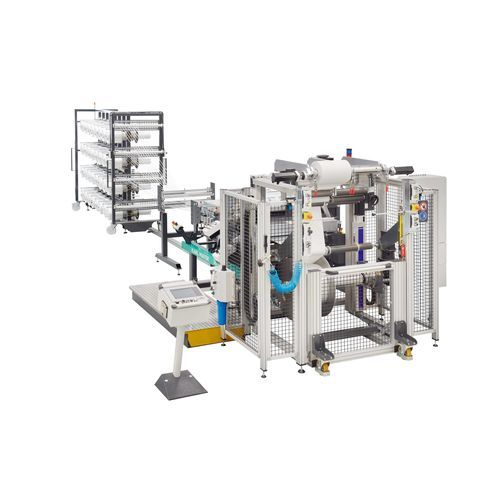

Carbon fiber fiber spreading line UD series

glass fiberaramid fiber

Fibre-spreading Lines KARL MAYER can supply a machine technologies for producing dry, unidirectional fibre tapes for use in lightweight construction applications. Our FIBRESpreader UD 500 and UD 800 can be used to produce fibre tapes with low weights from continuous filament yarns, such as carbon, glass and aramid. The tapes can be produced in widths of up 800 mm. Modular machine technology enables additional bonding agents to be incorporated, such as adhesive grids, powders and films. Benefits High quality of unidirectional tapes High flexibility Modular machine concept Customised configuration Technical Details Working width: UD 500 - 1 × 500 mm (20") or 2 × 250 mm (10") UD 800 - 1 × 800 mm (31,5") or 2 × 355 mm (14") Area weight: From 35 gsm up to 300 gsm Modules: Powder scattering system Grid feeding system from above and below Heat fixation module Two individual spreading zones: for carbon fibres from 12–24K for carbon fibres from 48–60K Take-up device: Take-up roller system – Omega drive Batching device: Batching device with centre winding, beam diameter up to 40" Creel system: Tangential unwinding creel with mechanical or electronical yarn tension control Applications Protech Medtech Mobiltech
