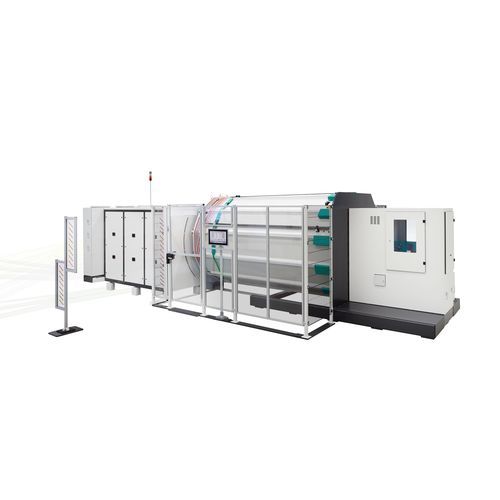

Warp knitting machine MULTI-MATIC series

Warp sampling machines are intended for the manufacture of stencils and of production warps either of short or medium length. The machines ensure an excellent quality of the woven fabrics meeting the textile manufacturers’ highest demands. Main features of our machines are their high productivity and a unique patterning flexibility. MULTI-MATIC 32 Compact High performance warp sampling machine for short and medium-length production warps in the same footprint as GIR-O-MATIC Benefits Short setup time and maximum flexibility for warp patterning at highest productivity Maximum efficiency due to precision high speed yarn feed control Fully automatic, network connected and remote-service capable Technical Details Working width 2,250 mm Max. beaming speed 60 m/min Warp length range 21 - 1,050 m Max. warping speed 800 m/min Beaming tension range 370/600 - 4,500 N Machine Features Flexibility The fully automatic warp sampling machine has a flexibility in patterning as well as the possibility to produce short and medium-length production warps. Short and medium length warps with large patterns do not require dividing of packages by re-winding. Minimum set-up times are possible due to pattern repeat input during the production via CAD system on an office PC. Efficiency due to automation The state-of-the-art drive control technology, the fully automated controlled leasing/sizing separation and automated color change with proven precise yarn laying at production speeds of up to 800 m/min is meeting the textile manufacturers’ highest demands. Operating cost savings for warps thanks to the minimum amount of yarn needed. With only a few packages
