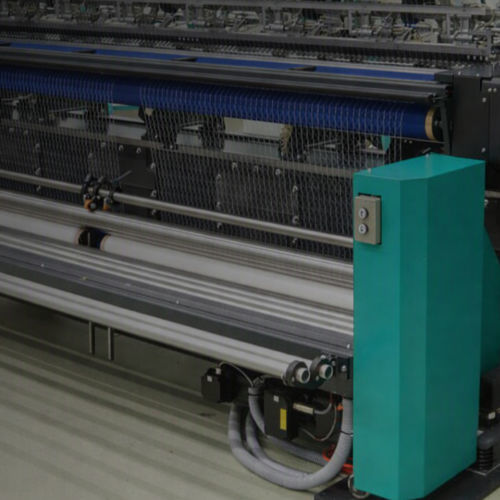

Raschel warp knitting machine RS 2 EL-F

for nets

The RS 2 EL-F is ideal for producing nets with maximum efficiency and quality. Thanks to its reliability and ease of use, the KARL MAYER net machine has made a name for itself among manufacturers of agricultural textiles. In addition to hay bale and pallet nets, tulip nets are also part of the product portfolio of this proven Raschel machine. The use of sturdy tulip nets for drone defense opens up completely new areas of application. Technical Details Working Width/ Gauge 226 inches = 5740 mm E6/6 = 1 Needle per 25,4 mm for the production of hay bale and pallet nets E6/3 = 2 Needle per 25,4 mm for the production of tulip nets Bars/ Knitting Elements Single needle bar, knock-over comb bar and slider bar RS 2 EL-F: 2 ground guide bars, GB 1 stitch-forming FTL Film cutting and stretching aggregate for processing primary film with continuously adjustable regulation of the stretching ratio. Resultante tape width for the production of hay bale and pallet nets Pillar stitch: 2 mm Inlay: 1 mm Resultant tape width for the production of tulip nets Pillar stitch: 2 mm Inlay: 1,5 mm Fabric Take-up Electronically controlled, 4-roller system driven by geared motor, controlled via Motion Control. Batching Device with traversing device and pneumatic pressure roller device No. 42 for the production of hay bale and pallet nets, batch diameter of 300 mm (12 inches) with a net weight of 10 g/m² and a fabric length of 3000 m. No. 42 B for the production of tulip nets, batch diameter of 800 mm (31,5 inches) with a net weight of about 30 g/m² Applications Hay and Straw Bale Nets
