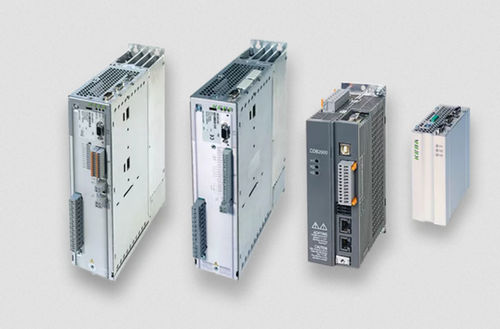

DC servo-controller c-line

ACfor servo motorsasynchronous

The c-line family offers the right device series for practically all drive tasks and motor variants. The basis of all drive controllers is identical. Fast installation and smooth commissioning with preset motion solutions, even with third-party motors, is a matter of course. Flexible adaptations to the motion task are possible with the PLC without additional costs. The integrated CANopen field bus and the wide range of options ensure perfect integration into the automation solution. Your benefits at a glance -Wide power range (2 A-210 A, 375 W-110 kW) -Wide mains voltage range (24 V-48 V DC, 1x230 V AC, 3x400V AC) -Closed- or open-loop motor operation and device variants -Integrated mains filter and 24 V supply -STO safety technology Unlimited motion Optimized for positioning, speed- or torque-controlled operation is also possible as an alternative. Preset versatile motion solutions with axis-internal profile generation facilitate commissioning. -Motion block table with intelligent follow-up job logic -CANopen drive profiles according to DS402 -Position- or speed -synchronous electronic gear -Path optimized rotary table operation -Freely programmable motion profiles with the PLC -Jog and homing mode
