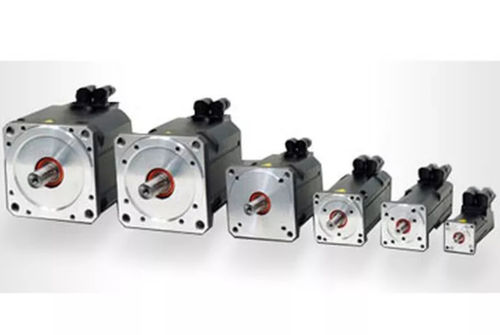

Three-phase servo motor LST
synchronous48 V24 V

three-phase servo motor
three-phase servo motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
48 V, 24 V
Configuration
compact
Other characteristics
low-voltage
Power

0.056 kW, 0.11 kW, 0.17 kW
(0.076 hp, 0.15 hp, 0.231 hp)

Torque

Min.: 0.1 Nm
(0.0738 ft.lb)

Max.: 115 Nm
(84.8196 ft.lb)

Description

KEBA servo motors are three-phase AC current motors for high-end servo applications, available in all rotation speeds and voltage varieties. The servo motor is particularly well suited for applications that put high demands on dynamics and stability. Use your machine to its full potential Your benefits at a glance -Top flexibility with options -Highly dynamic and stable -Cost optimization for your machine Flexible synchronous servo motor The LST-servo motor series offers some of our flexible design motors for further customization for a vast range of applications. It is based on a compact motor design with a high performance density. -Stall torque of 0.1 to 115 Nm -8 flange sizes (37, 50, 74, 97, 127, 158, 190, 220) -Particularly well suited for high rotation speeds, high dynamic and with a high overload capacity -Their flexible mechanical design makes them highly flexible for specialty solutions -Available as kit motor (built-in motor) -Available in low-voltage version (24/48 VDC) -Single-cable solution for performance and encoder signal
