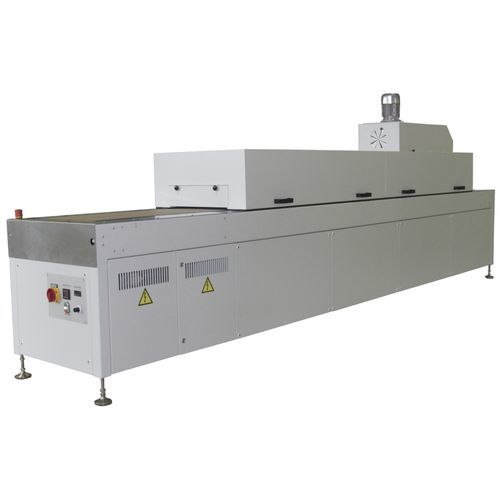

Hot air dryer SD

for the electronics industry

"Drying individual ceramic sheets, substrates or wafers after printing" High air flow ensure high drying efficiency. • Adjustable internal air circulation and fresh aiflow • Sheets are transported by teflonized mesh belt trough a heating tunnel. • Drying with high hot-airflow. Suitable for green ceramic sheet. • Very fast drying - IR heating version avaliable • Height adapted to KEKO screen printers • IR drier with IR lamps suitable where fast drying is required using IR lamps Hot air flow + ceramic IR heaters combination Suitable for hybrids and similar products SD Driers Purpose Drying with high hot-airflow. Suitable for green ceramic sheets Drying zone length(mm/inch) 1600/62 Belt Width (mm/inch) 300, 450/ 12, 18 Belt speed (m/min.) 0.05 - 6.0 Drying temperature (°C) up to 120(depens of air flow) Air flow (m/min.) up to 12(including aircirculation) Exhaust Tube diameter Ø 130 mm App. dimensions 2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch) Terminal power Depending on application and drying regime.Voltage: on request Options** 2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch) SDI Purpose Hot air flow + ceramic IR heaters combination Suitable for hybrids and similar products Drying zone length(mm/inch) 1600/62 Belt Width (mm/inch) 300, 450/ 12, 18 Belt speed (m/min.) 0.05 - 6.0 Drying temperature (°C) up to 250 Air flow (m/min.) up to 12(including aircirculation) Exhaust Tube diameter Ø 130 mm App. dimensions 2.7 m ( 106 inch) x 1.1 m ( 43 inch) x 1.4 m ( 55 inch Terminal power Depending on application and drying regime.Voltage: on request Options** 2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch)
