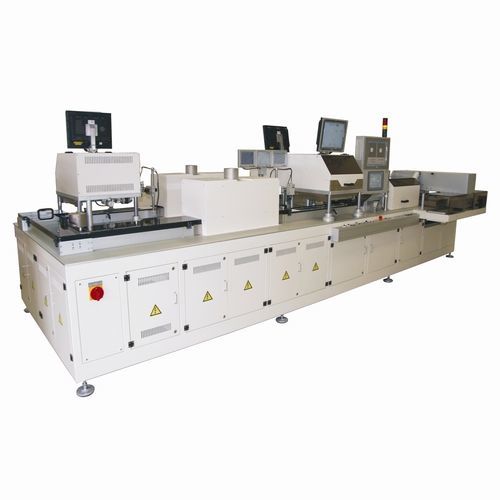

Multi-layer inductor making machine FSP-10

automatichigh-speedfor laboratory

"The automatic multi-layer inductor maker uses tape technology, with automatic removal of carrier films." • A patented system accurately positions punched sheets of tape and fills the vias on the stack. • The machine can automatically load and unload up to 156 blocks, which travel around on the carousel. • Sheets are picked up from the sheet reservoir, which contains sheets with guidance holes. • Dry tape gives superior stacking at high layer counts. Uses carrier-based tape technology, automatically removes carrier film • Positions punched sheets automatically, accurately. • Fills vias using a long life metal stencil. • Special scraper technology ensures excellent via fill High productivity = low cost per component • Fast changing of screens assisted by a pneumatic system. • Vias are filled on the stack ensuring excellent electrical contact with underlying electric circuits. • A metal stencil is placed with precision accuracy on top of the stack. The via fill paste is transferred into the vias by using a specially designed scraper. • After drying of the vias, the circuit can be printed on the tape surface. Screen changing on the FSP 12 is rapid and precise, due to a pneumatic system that fixes the screen to the printer. • For inductors A-B shifting is done automatically. • A high-speed belt transporter results in a low cycle time. • As an option , a tape edge gluing device can be added to avoid any movement of the sheets during transportation between positioning and the press.
