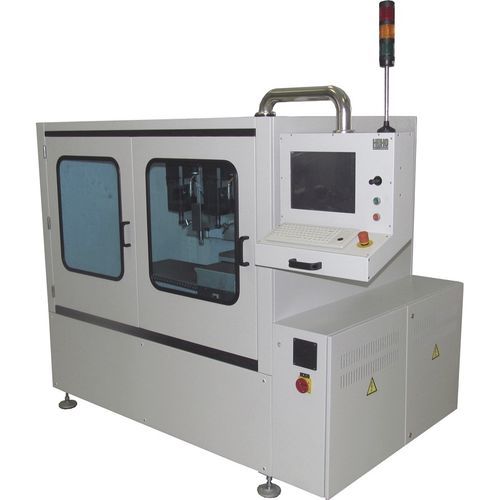

Horizontal milling machine CNC-MM series

floorfor ceramicsindustrial

For quick production round multilayer shapes • CNC Milling Machine mills and cuts round parts out of green ceramic like: capacitors, varistors, other ceramic parts • Automatically align cuts against electrodes or fiducial marks • Two different milling / cutting tools installed • Easy programing via DXF files - Simple operation Technical specifications CNC Number of tools 8 Spindle speed 1000 to 12000 r/m Table size 280 x280 mm Working area 230 x230 mm Z stroke 160mm Table moving speed up to 200mm/s Positioning accuracy 10 micron Tool holder ER20 / SK20 Control PC Number vision cameras 1 App. dimension L x W x H: 2,2 m ( 86 inch) x 1,8 m ( 70 inch) x 2,1 m ( 82 inch Weight app. 1200kg Electricity 3 x 360-415V, 50/60Hz, or according to the customer requirements Power app. 6 kW Compressed air 0,8 MPa, 300 L/min Vacuum cleaner included Options vacuum pump or factory vacuum line connection in order to reduce air consumption
