Infrared thermometer PK 72

digitalruggedfixed

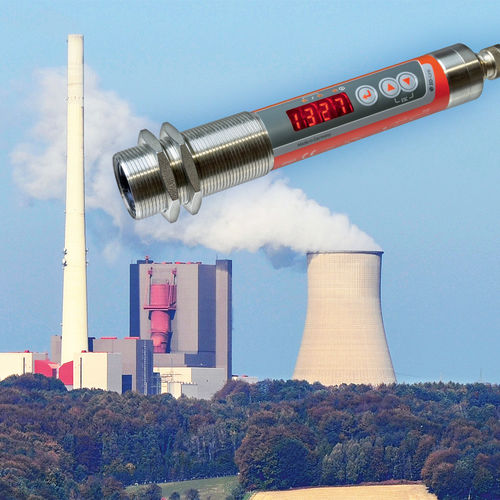

The CellaCombustion PK 72 measures the temperature of hot combustion gases without contact. It is equipped with a special optical filter to measure precisely at the wavelength at which CO2-containing combustion gases have a high optical density and therefore good radiation properties. The infrared thermometer is used in large combustion plants such as coal-fired power stations, biomass and waste incineration plants. However, even in smaller combustion plants, wear- and maintenance-free infrared temperature measurement technology is more than just an alternative to conventional thermocouples, as there are no follow-up costs for regular replacement. Thanks to the compact design and the narrow field of view, the CellaCombustion PK 72 can be easily installed on existing furnace openings. Features: - Temperature range from 400 to 2000 °C - Small, compact design - Universally configurable switching output - Precision lenses provide high optical Resolution - IO-Link interface - All parameters adjustable by control keys on the sensor or via interface from the plant control - Test function to be activated by control key or control signal - Easy installation thanks to M30 screw thread mounting - Bright high-intensity LED display
