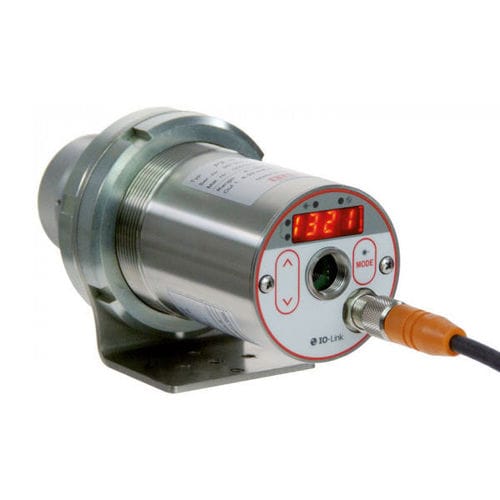

Two-color pyrometer CellaCrystal PX 44
digitalwith laser pointerIO-Link

Two-color pyrometer - CellaCrystal PX 44 - Keller ITS (Infrared Temperature Solutions) - digital / with laser pointer / IO-Link
Two-color pyrometer - CellaCrystal PX 44 - Keller ITS (Infrared Temperature Solutions) - digital / with laser pointer / IO-Link
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
two-color
Display
digital
Aim
with laser pointer
Communication
IO-Link
Protection level
IP65
Configuration
fixed
Other characteristics
precision
Temperature

Min.: 750 °C
(1,382 °F)

Max.: 3,000 °C
(5,432 °F)

1,000 °C
(1,832 °F)

Precision

0.35 %

Resolution

0.2 °C
(32.36 °F)

Spectral range

Min.: 1 µm

Max.: 1.1 µm

Response time

Min.: 10 ms

Max.: 10 ms

10 ms

Description

The CellaCrystal PX 44 has been developed for optical temperature measurement during the growth of silicon crystals. The calibration is specially adapted to the production of crystals. Combined with the constantly high resolution of < 0.1 K over the entire measuring range and the very high long-term stability, the instrument meets the requirements in terms of accuracy and stability. The pyrometer can be precisely aligned to the measuring point with the aid of the through-the-lens sighting, laser pilot light or video camera.
