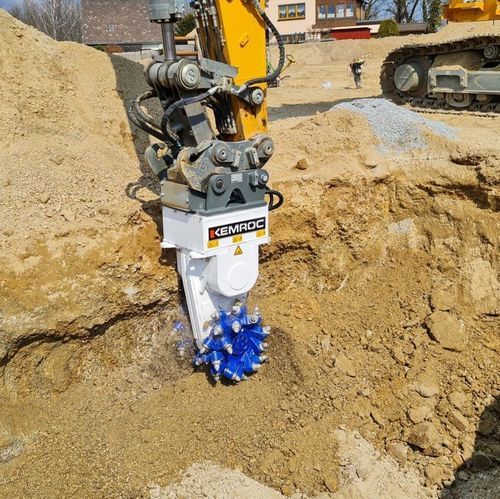

Excavator hydraulic milling cutter EKT 100

rotary

Overview
The patented EK range of chain cutters are one of KEMROC's core products. The concept is expanded with the EKT range of traditional rotary drum cutters supplied as rotary drum cutters without a central cutting chain; conversion kits are available so cutter chains can be fitted later.

Features

• Can be converted to an EK model
• Fast and strong
• Two motors for extra hydraulic power
• Tough, rigid gearbox housing
• Drums supported on robust bearings
• Protection for hydraulic hoses
• Works underwater without need for modifications

Application areas

• Trenching and pipeline work
• Mining of soft to medium hard minerals
• Concrete renovation, profiling, underwater excavations and tunnelling

Caractéristiques / Spécifications techniques

• Number of models in the series: 9
• Series name: EKT range (rotary drum cutters; convertible to EK chain cutters via conversion kits)
• Common attributes displayed per model: Compatible rotation unit (KRM), Cutter drum diameter (C), Cutting force at 380 bar, Cutting width (B), Drum cutter length (A), Max. oil flow, Max. operating pressure, Max. rock compressive strength, Number of picks, Pick box / Standard pick type, Rated power, Recommended excavator weight, Recommended oil flow, Recommended rpm, Standard hole pattern, Torque at 380 bar, Weight per cutting width
• Models and key technical data:
  • EKT 20 — Compatible rotation unit: KRM30; Cutter drum diameter: 225 mm (9 in); Cutting force: 21 kN; Cutting width: 410 mm; Drum cutter length: 540 mm; Max. oil flow: 70 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 25 MPa; Number of picks: 56; Pick box: PH 14 Type; Rated power: 22 kW; Recommended excavator weight: 2–6 t; Recommended oil flow: 30 l/min; Recommended rpm: 75 rpm; Standard hole pattern: LB10; Standard pick: 15/29/26/14 C; Torque at 380 bar: 2400 Nm; Weight per cutting width: 130 kg
  • EKT 40 — Compatible rotation unit: KRM35; Cutter drum diameter: 445 mm (18 in); Cutting force: 22 kN; Cutting width: 500 mm; Drum cutter length: 1000 mm; Max. oil flow: 115 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 30 MPa; Number of picks: 52; Pick box: PH 20 Type; Rated power: 44 kW; Recommended excavator weight: 7–11 t; Recommended oil flow: 85 l/min; Recommended rpm: 90 rpm; Standard hole pattern: LB10; Standard pick: 16/46/38/20 C; Torque at 380 bar: 4800 Nm; Weight per cutting width: 430 kg
  • EKT 60 — Compatible rotation unit: KRM40; Cutter drum diameter: 590 mm (23 in); Cutting force: 30 kN; Cutting width: 500 | 600 mm; Drum cutter length: 1190 mm; Max. oil flow: 195 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 50 MPa; Number of picks: 40 / 60; Pick box: PH 22 Type; Rated power: 60 kW; Recommended excavator weight: 12–17 t; Recommended oil flow: 140 l/min; Recommended rpm: 80 rpm; Standard hole pattern: LB20; Standard pick: 15/46/38/22 C; Torque at 380 bar: 8800 Nm; Weight per cutting width: 725 | 775 kg
  • EKT 100 — Compatible rotation unit: KRM50; Cutter drum diameter: 690 mm (27 in); Cutting force: 46 kN; Cutting width: 700 | 800 mm; Drum cutter length: 1460 mm; Max. oil flow: 260 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 80 MPa; Number of picks: 40 / 44; Pick box: PH 32 HD Type; Rated power: 100 kW; Recommended excavator weight: 18–30 t; Recommended oil flow: 200 l/min; Recommended rpm: 65 rpm; Standard hole pattern: LB30; Standard pick: 17/75/70/30 Q; Torque at 380 bar: 15700 Nm; Weight per cutting width: 1300 | 1360 kg
  • EKT 110 — Compatible rotation unit: KRM60; Cutter drum diameter: 690 mm (27 in); Cutting force: 56 kN; Cutting width: 700 | 800 mm; Drum cutter length: 1460 mm; Max. oil flow: 300 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 80 MPa; Number of picks: 40 / 44; Pick box: PH 32 HD Type; Rated power: 110 kW; Recommended excavator weight: 25–32 t; Recommended oil flow: 250 l/min; Recommended rpm: 65 rpm; Standard hole pattern: LB30; Standard pick: 17/75/70/30 Q; Torque at 380 bar: 19500 Nm; Weight per cutting width: 1300 | 1360 kg
  • EKT 140 — Compatible rotation unit: KRM60; Cutter drum diameter: 720 mm (28 in); Cutting force: 68 kN; Cutting width: 880 mm; Drum cutter length: 1540 mm; Max. oil flow: 320 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 100 MPa; Number of picks: 44; Pick box: PH 32 HD Type; Rated power: 140 kW; Recommended excavator weight: 30–45 t; Recommended oil flow: 275 l/min; Recommended rpm: 70 rpm; Standard hole pattern: LB40; Standard pick: 17/75/70/30 Q; Torque at 380 bar: 24500 Nm; Weight per cutting width: 2000 kg
  • EKT 150 — Compatible rotation unit: KRM60; Cutter drum diameter: 720 mm (28 in); Cutting force: 83 kN; Cutting width: 880 mm; Drum cutter length: 1540 mm; Max. oil flow: 390 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 100 MPa; Number of picks: 44; Pick box: PH 32 HD Type; Rated power: 150 kW; Recommended excavator weight: 35–50 t; Recommended oil flow: 330 l/min; Recommended rpm: 65 rpm; Standard hole pattern: LB40; Torque at 380 bar: 29800 Nm; Weight per cutting width: 2000 kg
  • EKT 160 — Compatible rotation unit: KRM70; Cutter drum diameter: 720 mm (28 in); Cutting force: 91 kN; Cutting width: 880 | 1040 mm; Drum cutter length: 1540 mm; Max. oil flow: 425 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 120 MPa; Number of picks: 44 / 56; Pick box: PH 32 HD Type; Rated power: 150 kW; Recommended excavator weight: 35–50 t; Recommended oil flow: 350 l/min; Recommended rpm: 65 rpm; Standard hole pattern: LB40; Standard pick: 19/75/70/30 Q; Torque at 380 bar: 32700 Nm; Weight per cutting width: 2000 | 2500 kg
  • EKT 220 — Compatible rotation unit: KRM80; Cutter drum diameter: 860 mm (34 in); Cutting force: 138 kN; Cutting width: 920 | 1300 mm; Drum cutter length: 1760 mm; Max. oil flow: 650 l/min; Max. operating pressure: 400 bar; Max. rock compressive strength: 140 MPa; Number of picks: 44 / 60; Pick box: PH 38 HD Type; Rated power: 220 kW; Recommended excavator weight: 50–70 t; Recommended oil flow: 550 l/min; Recommended rpm: 45 rpm; Standard hole pattern: LB40; Standard pick: 25/80/80/38 C; Torque at 380 bar: 59500 Nm; Weight per cutting width: 3100 | 3550 kg
