Hydraulic rotator KRM 60

Product
The KRM 60 rotation unit is a hydraulic rotation unit and cutter attachment designed for excavators to perform rotary cutting operations and rotation tasks.

Overview
Part of the KRM Rotation Units family. Designed for mounting on excavators with the recommended operating and installation parameters below. Features an integrated driveline with two drive motors and high holding torque for demanding rotation and cutting applications.

Applications

• Demolition and cutting operations
• Material handling and positioning
• Forestry and processing works

Visuals

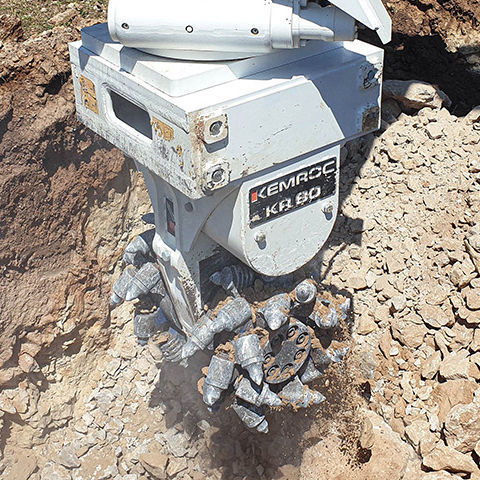

Includes product image and technical drawing showing overall dimensions and installation orientation.

Technical specifications

• Recommended excavator weight: 25 – 40 t (55,000 – 90,000 lb)
• Diameter (A): 600 mm (24 in)
• Height (B): 610 mm (24 in)
• Length (C): 780 mm (31 in)
• Width (D): 770 mm (30 in)
• Recommended idle rpm: 1 rpm
• Max. idle oil flow: 40 l/min (≈11 gal/min)
• Max. operating pressure: 160 bar
• Max. holding torque: 200,000 Nm
• Weight: 910 kg (≈2,006 lb)
• Number of drive motors: 2 Pcs

Installation & maintenance
Mount according to the technical drawing and recommended parameters. Follow a regular maintenance schedule for hydraulic motors, seals and driveline components to ensure reliable operation and long service life.
