Cable test system ETL-10

vehicle-basedhigh-voltage

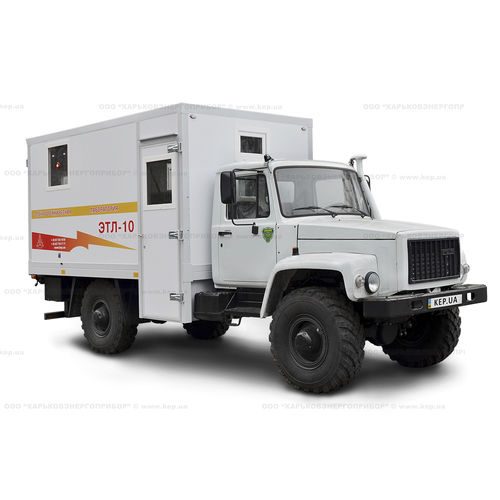

Cable test van ETL-10 is a combination of testing equipment mounted in a van and designed to perform the following: High-voltage testing with AC voltage of up to 50 kV; High-voltage testing with DC voltage of up to 60 kV; Burning the defective insulation of cables and its further aftreburing; Determining the distance to the fault with Time Domain Reflectometer RIF-9; Finding cable faults using the induction method with the audio-frequency generator GZCH-2500 and the surge wave locator set P-900; Finding cable faults using acoustic method with the acoustic generator GAUV-32 and the surge wave locator set P-900. The price of ETL-10 incudes the trainging of the Customer's personnel. ETL-10 manufacturing time is 30 days.
