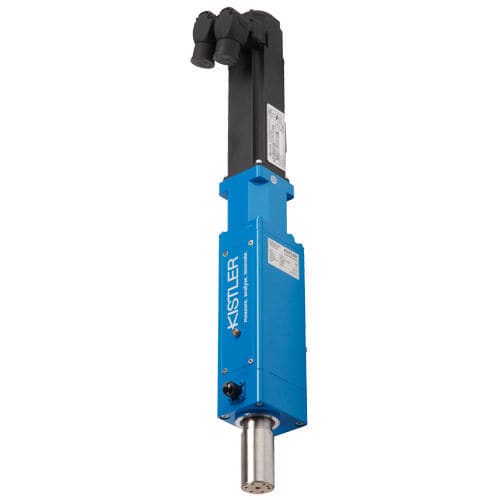

Joining module with integrated force sensor 2157B1

• Measuring range: 0,25 kN/0,05 kN • 100 mm stroke • Speed 400 mm/s , straight version The NC joining module NCFT Type 2157B... with integrated piezoelectric force sensor for two predefined measuring ranges of 0,05 ... 1,5 kN is excellent for use in assembly and joining processes monitored by force displacement. Besides a straight version with 100 mm stroke, a compact angular version with 250 mm stroke is available. • High-precision force measurement via telemetry • Certified for ISO 14644-1 class 8 clean room use (7 possible) • Extremely wide measuring range of 0,05 … 1,5 kN • High velocity for very short cycle times • High overload capacity of sensor
