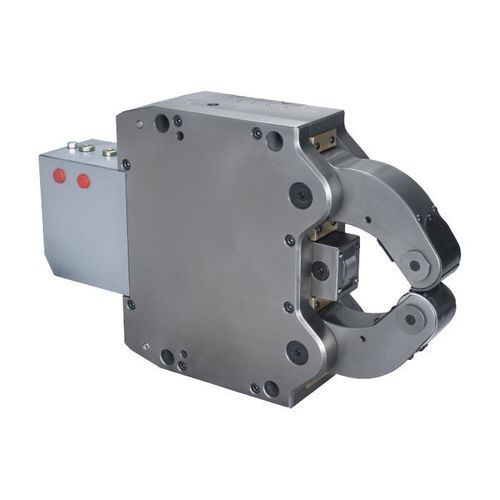

Lathe steady rest FRUN 2

Overview
Fully sealed steady rest for standard turning applications. Suitable for flat-bed and slant-bed CNC lathes. Available diameters: 6 mm to 350 mm. Mounting brackets available on request.

Key features

• Centering range (with 3-piece chip guard): 8-101 mm
• Cylinder bore (d): 50 mm
• Hydraulic connection (BSP) [h]: 1/4"
• Operating pressure (Min/Max): 8/70 bar
• Max clamp force per roller: 4.5 kN
• Clamping force per roller at 15 bar: 1.13 kN
• Centering accuracy (whole range): 0.02 mm
• Repeatability: 0.005 mm
• Max peripheral speed: 800 m/min
• Approx. weight: 20 kg
• Includes safety valve
• Provision for max opening feedback
• Includes 1 set swarf guard (3-piece)
• Provision for compressed air connection
• Provision for centralized lubrication

Further information
This fully sealed series is intended for standard turning operations across industrial applications. Diameters from 6 mm to 350 mm; suitable for both flat-bed and slant-bed CNC lathes. Mounting brackets can be supplied to customer requirements.

Technical specifications

• Model: FRUN 2
• Centering range: 8-101 mm (with 3-piece chip guard)
• Cylinder bore (d): 50 mm
• Hydraulic connection (BSP): 1/4"
• Operating pressure: 8-70 bar
• Max clamp force per roller: 4.5 kN
• Clamping force per roller at 15 bar: 1.13 kN
• Centering accuracy (whole range): 0.02 mm
• Repeatability: 0.005 mm
• Max peripheral speed: 800 m/min
• Approx. weight: 20 kg
• Includes safety valve and 3-piece swarf guard (1 set)
• Provisions: max opening feedback, compressed air connection, centralized lubrication
