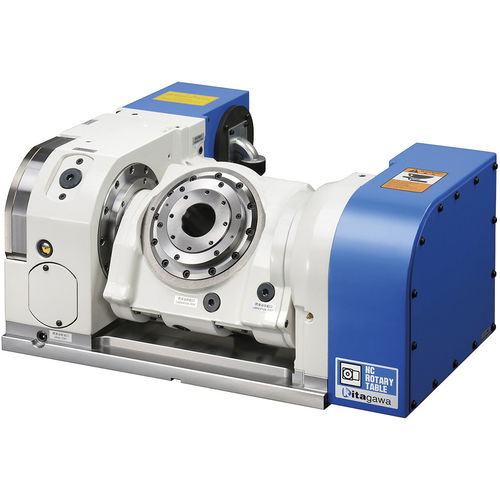

Pneumatic rotary table RKT180
horizontaltiltingcompact

Pneumatic rotary table - RKT180 - Kitagawa Europe - horizontal / tilting / compact
Pneumatic rotary table - RKT180 - Kitagawa Europe - horizontal / tilting / compact
Add to favorites
Compare this product

Characteristics

Operation
pneumatic
Configuration
horizontal, tilting
Other characteristics
NC, compact, small

Description

Overview
  • Tilting NC rotary table for 4th and 5th axis machining, designed for high-volume production
  • Model: RKT180 (Kitagawa)
  • 180 mm faceplate diameter; tilting range -35° to +110°; through hole Ø50 mm; centre height 170 mm
  • Table mass: 193 kg; allowable load: horizontal 60 kg / tilted 40 kg


Key features
  • Roller cam drive for minimal maintenance and zero backlash
  • Pneumatic clamping with high clamping torque: rotating axis 350 Nm / tilting axis 550 Nm (at 0.5 MPa)
  • Compact design suitable for small machining centres (No.30 spindle taper, 100 mm column)
  • Optional built-in rotary joint for integrated hydraulic/pneumatic piping (RJ50RKT180)


Specifications (summary)
  • Faceplate diameter: 180 mm
  • Register diameter on faceplate: 50 mm
  • Through hole: 50 mm
  • Centre height: 170 mm
  • Clamping torque: rotating axis 350 Nm / tilting axis 550 Nm (at 0.5 MPa)
  • Gear ratio: rotating 1/72 / tilting 1/120
  • Max spindle speed: rotating axis 41.6 rpm / tilting axis 25 rpm
  • Allowable work inertia: 0.25 kg·m2
  • Allowable load: horizontal 60 kg / tilted 40 kg
  • Mass: 193 kg


Rotation axis
  • Indexing accuracy: 20 sec
  • Repeatability: 8 sec
  • Maximum rotation speed: 41.6 rpm (motor 3000 rpm)
  • Motor: 3000 rpm
  • Clamping torque: 350 Nm (pneumatic press 0.5 MPa)
  • Maximum pneumatic press: 0.7 MPa
  • Total reduction ratio: 1/72


Tilting axis
  • Indexing accuracy: 20 sec
  • Repeatability: 4 sec
  • Maximum rotation speed: 25 rpm (motor 3000 rpm)
  • Motor: 3000 rpm
  • Clamping torque: 550 Nm (pneumatic press 0.5 MPa)
  • Maximum pneumatic press: 0.7 MPa
  • Total reduction ratio: 1/120


Further information / features
  • Roller cam mechanism eliminates backlash adjustment and reduces long-term maintenance
  • Optional built-in rotary joint: 5 hydraulic ports + 1 pneumatic port for compact, integrated piping
  • Suitable for integration into 4th/5th axis machining processes; CAD files and technical documents available on request


Technical specifications
  • Model: RKT180
  • Tilting angle range: -35° ～ +110°
  • Table diameter (register plate): φ95 mm
  • Centre hole diameter: φ50H7
  • Through hole diameter: φ50 mm
  • Centre height: 170 mm
  • Clamping method: Pneumatic
  • Clamping torque (at 0.5 MPa): rotating axis 350 Nm / tilting axis 550 Nm
  • Motor axis reduced inertia: rotating 0.000239 kg·m2 / tilting 0.000425 kg·m2
  • Servomotor (Fanuc spec.): αiF2/5000
  • Total reduction ratio: rotating 1/72 / tilting 1/120
  • Max. rotation speed (at motor 3000 min-1): rotating 41.6 rpm / tilting 25 rpm
  • Allowable work inertia: 0.25 kg·m2
  • Indexing accuracy (sec): rotating 20 / tilting 20
  • Repeatability (sec): rotating 8 / tilting 4
  • Allowable load: horizontal 60 kg / tilted 40 kg
  • Mass of product: 193 kg
  • Built-in rotary joint (option): RJ50RKT180 — Hydraulic/Pneumatic 5 ports + 1 pneumatic port
