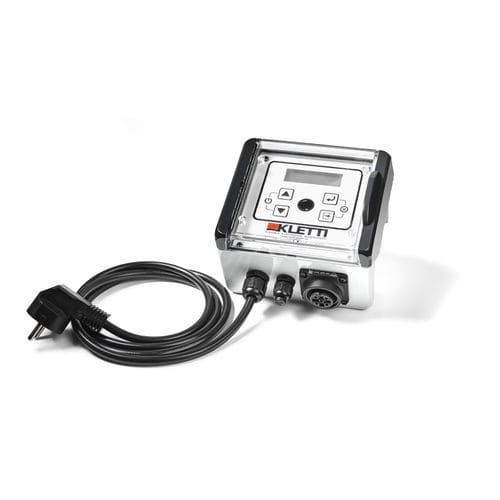

Digital temperature controller KM-RD-50xx

ULIP65heating

The completely new developed temperature controller of the KM-RD-50xx series combines an extremely durable switching element with hybrid technology as well as easy usability. The controllers use Fast-Adaptive-Tuning (FAT), a completely innovative control algorithm which adapts the control behavior to the controlled system. Other Features: Optimum operation of heating systems with different control behaviors Multi-lingual menu control with only a few setting options Setting the parameters or triggering an autotuning process is not necessary Wide-Range power supply 90 – 250 VAC 50/60Hz Comfort functions like partial automatic detection of connected temperature sensors Multi-colored LEDs for easy reading of the control settings Set point range: 0…999°C (Min/Max adjustable) Circuit Breaker: Hybrid relays (Durability > 2,5 mio. Circle of operation) with safety-shutdown relay (disconnects the heating circuit in case of fault) Switching circuit 10 A (KM-RD-5002) and 16 A (KM-RD-5012)
