For thin ribbon cables up to 10.0 mm width in a single pass
For single, multiple and fine stranded conductors with plastic or rubber insulation
Adapts automatically to the respective cable cross-section; prevents damage to the conductor
Cutting depth can be adjusted for different insulation materials
With wire cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm²
Smoothly operating mechanism
Stripping blades and clamping jaws easily replaceable
Low weight
Body: plastic, fibreglass-reinforced
Blade: special tool steel, oil-hardened
EAN
4003773026662
Weight
202 g
Dimensions
200 x 95 x 21 mm
REACH compliant
yes
RohS compliant
no
Stripping capacities in square millimetres
0.03 — 10.0 mm²
Length stop
3 – 18 mm
AWG
32 — 8

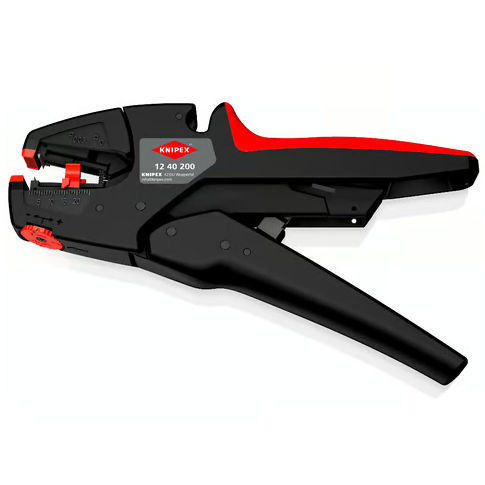

With these wire strippers, wire stripping is a piece of cake: insert cable, press the pliers handle, done. The Knipex 12 40 200 has been specifically developed for solid, multicore and finely stranded conductors of between 0.03 and 10.0 mm² with a single layer of insulation. Such small conductor cross-sections – as with thin flat ribbon conductors with a width of up to 10 mm – are predominantly found in the area of electronics. The Knipex 12 40 200 is therefore bought frequently specifically for work in electronics.
Straight blade for best work on single layer insulation
