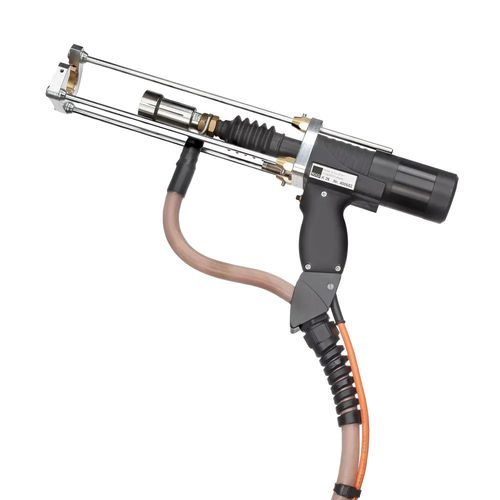

Stud welding gun CLASSIC K 26
manualdrawn arc

stud welding gun
stud welding gun
Add to favorites
Compare this product


Characteristics

Function
stud welding
Operational mode
manual
Other characteristics
drawn arc

Description

The CLASSIC K 26 is a robust stud welding gun with a weldable stud range of 13-25 mm. It contains an adjustable plunge damper, the robust housing promises safe welding processes and was designed for welding on building sites. Benefits • Ideal for through-deck-welding td • Most suitable for long shear studs • Adjustable hydraulic plunge damper • Robust housing • Designed for welding on building sits Technical information • Stud welding with ceramic ferrule, weld area Ø : 13 - 25 mm • Standard support via ... pillars : 3 pcs • Stroke limitation from ... to : 2,5 - 6 mm • Welding cable : 2 / 120 m/mm² • Control cable : 2 / 4 x 1,0 m/mm² • Length (without stud holder) : 300 mm • Housing Ø : ca. 63 mm • Height (incl. handle) : 240 mm • Weight without connection cable : 2,6 kg • Weld area : 13 - 25 mm
