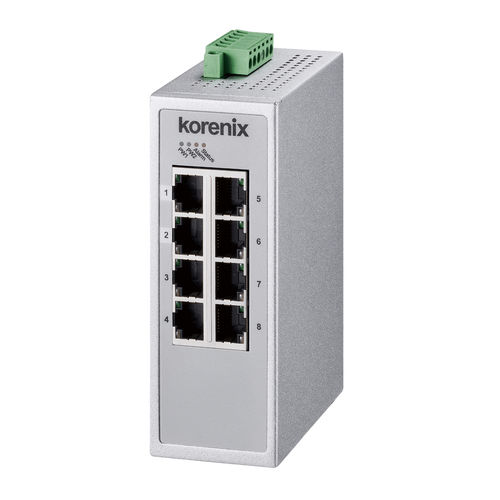

Managed ethernet switch JetLink 2108

8 portslayer 2DIN rail

Managed Switch support EtherNet/IP 8 ports 10/100 Base-T Fast Ethernet RJ-45 Supports EtherNet/IP Protocol for Factory Automation Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB Layer 2 Network Performance – Port based VLAN, GVRP, IGMP Snooping v1/v2/v3, MLD Snooping, Storm Control, Link Aggregation Layer Security: Static, Dynamic, MAC address filtering Software Feature: TFTP, HTTP, Dual Image JetLink Ring: High-speed recovery time less than 20ms Wide Temperature design -40~75oC Dual 12-48V Wide Power Input IP 30 Metal Case Protection - - - - - Product Introduction JetLink 2108 is a new generation of entry-level managed switch products. They support the EtherNet/IP protocol to communicate with Ethernet/IP based PLCs. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (12 to 48 VDC) and wide temperature (-40~75oC) design are dedicated to operating in areas of unstable power and rugged environments.
