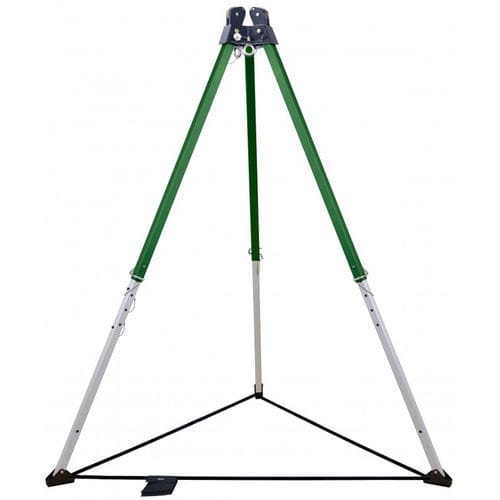

Aluminium lifting tripod FA6010100

with winch

7 ft. Tripod, with double head-mounted pulley For access in confined spaces Adjustable height: from 1.15 m to 2.15 m Wheelbase: from 1.08 m to 1.62 m Weight: 14.6 kg Maximum Load Capacity: 500 kg under head / 250 kg on leg Compliance: EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808 - With two double head-mounted pulleys at the head of the Tripod for passing the cable of the winch and the retractable fall arrester with integrated rescue winch. - Having two auxiliary eye bolts as attachment points. - Aluminum alloy cast head, legs in aluminium. - Steel support-shoes provided with rubber sole to increase friction and impart more stability. - Strength of anchorage point > 12 kN - To be used in combination with the set of universal adaptation plates for attaching our winch. - To be used in combination with the set of universal adaptation plates for attaching our retractable fall arresters with integrated rescue winch /R/S. - Every Tripod is provided with Tripod Bag
