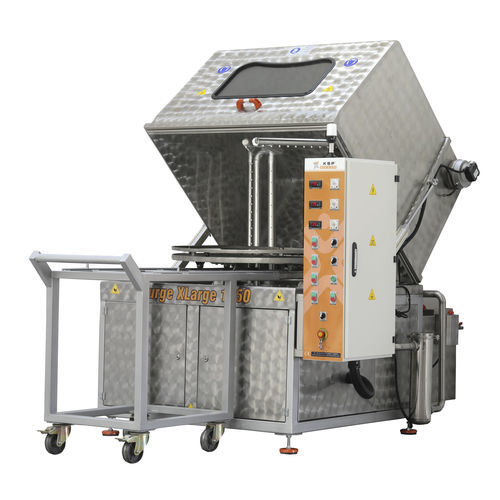

Water washing machine Purge XLarge 1250

spraywater-based detergentby rotation/agitation

The parts which will be washed are placed on a basket that is placed on a stainless rotary platform with sliding system are washed in a closed cabinet with pressured hot water and detergent mixture. The washing process is done through water nozzles which are timed and compressive according to part structure, dirtiness rate; they clean the waste, oil, and chip on dirty surfaces in various angles. Rinsing process follows washing process and complétés the cleaning of the parts in the system. After cleaning processes drying process starts, which works with hot air and air jets. When ail processes are done ail parts will be ready for the next processes like packing, coating etc. PURGE XLARGE has been designed for minimum consuming the water, detergent, electric, and time (work force) with cyclic and filtering water system. General Spécifications Stainless Steel Body, Basket and Pipes Cleaning Process Timing Developed to save water, detergent and energy Minimum water consumption by closed circuit water cycling system Heated water (solution) dispensed through jet nozzles to the part High user safety on pneumatic pistons Belt-Pulley driven rotary table A water level sensor is used to protect the pumps and heaters against dry running Heating elements are made of spécial material incoloy alloy European Electrical and Technical Components High-performance and reliable European Pumps Pneumatic Front Door System
