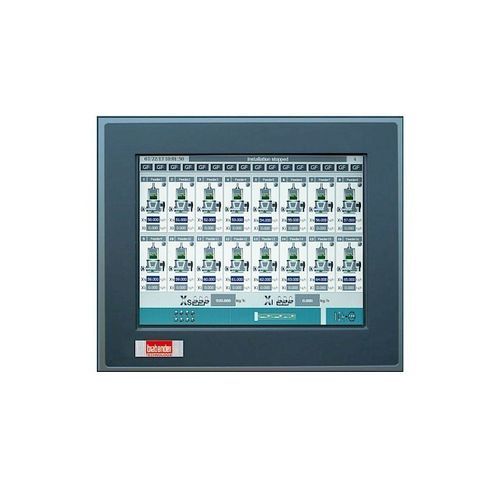

HMI with touch screen Congrav® OP16-E

panel-mountcolor LCDFieldbus

Overview
The Congrav® OP16-E is an operator interface designed for multi-feeder control in industrial dosing and blending systems. It connects via a serial bus link to Congrav® controllers (CB-E, CB-S, CM-E) and central host systems to manage recipes and component dosing on production lines.

Technical details

• Connection via the Brabender fieldbus (serial bus link)
• Host computer interfaces for process integration
• Control and operation of Congrav® CM-E, CB-E and CB-S controllers
• Supports up to 16 components

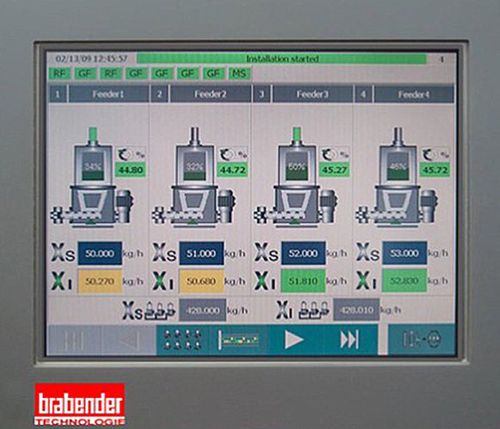

• Functions: recipes management, process diagrams, protocol logging
• Display: 15" color touchscreen

Available documents
Work standard (PDF) available for this product.

Technical specifications

• Operator interface for multiple feeder control
• Connection: Brabender fieldbus (serial bus link)
• Compatible controllers: Congrav® CB-E, CB-S, CM-E
• Maximum components supported: 16
• Available functions: recipes, diagrams, protocols
• Display: 15" color touch screen
