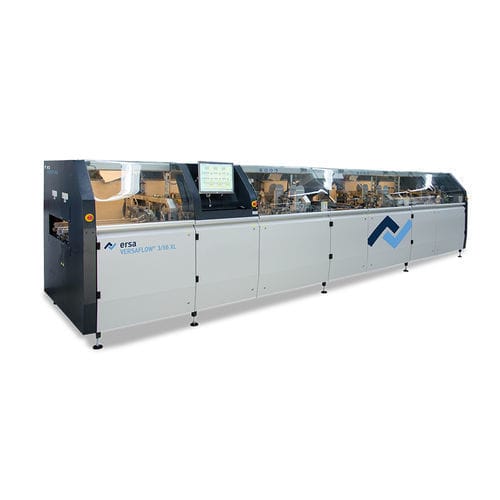

Inline selective soldering machine VERSAFLOW 3/66 XL

for PCB

• Highest throughput in the entire selective soldering market • Most sold selective machine platfoem worldwide • Safe process control with monitoring of all relevant parameters • Full modularity - suitable for every customer requirement The first inline selective system with double transport - highest flexibility and highest throughput with smallest footprint. • Length: 10.150 mm • Width: approx. 1.900 mm • Height: approx. 1.650 mm • Pin chain transport or roller transport • PCB width: 100-610 mm • PCB length: 150-3,000 mm • Maximum PCB build-up at the top up to 120 mm • Maximum PCB build-up at the bottom up to 60 mm • Maximum PCB weight: 10 kg (optional 20 kg) • Fluxer: Drop-Jet in different sizes • Preheater: IR radiator heating, convection or combination of IR and convection • Soldering module: • Electromagnetic solder pot • 1 module with up to 2 pots, solder volume 13 kg/pot
