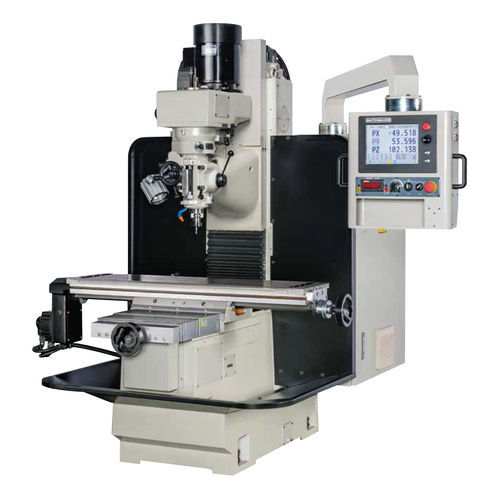

3-axis CNC milling machine BM series
verticalhigh-speedhigh-speed

3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Other characteristics
high-speed, high-speed, milling
X travel

762 mm, 812 mm, 1,000 mm
(30 in, 32 in, 39 in)

Y travel

400 mm, 470 mm, 508 mm
(16 in, 19 in, 20 in)

Z travel

470 mm, 508 mm, 560 mm
(19 in, 20 in, 22 in)

Rotational speed

50 rpm, 4,500 rpm, 6,000 rpm
(314 rad.min-1, 28,274 rad.min-1, 37,699 rad.min-1)

Power

1 kW, 1.5 kW
(1.36 hp, 2.04 hp)

Work feed X-axis

7,000 mm/min
(5 in/s)

Work feed Y-axis

7,000 mm/min
(5 in/s)

Table load capacity

400 kg, 500 kg, 660 kg
(882 lb, 1,102 lb, 1,455 lb)

Weight

1,800 kg, 2,100 kg, 3,200 kg
(3,968.32 lb, 4,629.71 lb, 7,054.79 lb)

Overall length

2,500 mm, 2,600 mm, 2,800 mm
(98.4 in, 102.4 in, 110.2 in)

Overall width

1,300 mm, 1,500 mm, 1,800 mm
(51.2 in, 59.1 in, 70.9 in)

Overall height

2,100 mm, 2,250 mm, 2,425 mm
(82.7 in, 88.6 in, 95.5 in)

Description

MATCHMAKER-M83 CNC Controller Conversational CNC Control MATCHMAKER-M83 + User Friendly Control System: This makes the BM Series the perfect choice for those new to CNC Also for the workshop that's looking to modernize or expand. It's capabilities High speed machining has never been more affordable. This system can be converted to the traditional manual DRO hand wheel mode. All three axes are equipped with AC absolute positioning servo motors to achieve position accuracy, also maintain axes positions forever in the manual hand wheel operation. USB interface allows users to download large 3D ISO G codes generated by CAM to the controller, then execute without extra steps. (Opt.) Ether CAT controller TCPU host unit 10.4 inch color touch screen multi -function hand wheel Multi-function button Emergency stop lock switch Milling machine can cycle 2.5 D milling graphical dialogue ESPU I/O unit (Opt.) INSMILL The simple graphic exhibit the shape of the part, the preset canned cycles simplify the operational procedures. Each milling object has four different optional sets of parameters to define the potential variations. The Graphic guided system allows the operator to input geographic parameters as well as the desired machining parameters to the controller and also use the built-in user friendly canned cycle operations.

Catalogs

BM-series
BM-series
2 Pages
