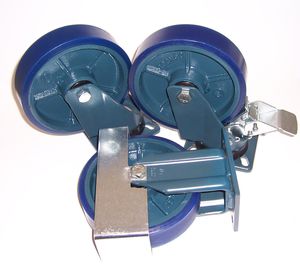

Wheel with solid tire ZETA SOFT + M40 seriescast ironsmoothball bearing
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- cast iron
- Hub type
- smooth, ball bearing
- Tread material
- polyurethane
- Hardness
- Shore A
- Applications
- plate , sheet
- Other characteristics
- non-marking
- Load capacity
Max.: 450 kg
(992 lb)Min.: 300 kg
(661 lb)- Diameter
Max.: 250 mm
(9.84 in)Min.: 100 mm
(3.94 in)- Tread width
Max.: 50 mm
(1.97 in)Min.: 30 mm
(1.18 in)
Description
CAST IRON CORE - CAST SOFT POLYURETHANE COATING.
Cast soft polyurethane coating, hardness 87±3 Shore A.
Core in cast iron painted.
High load capacity, smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases; schocks absorbing.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: shielded precision ball bearings.
MEDIUM-HEAVY DUTY CASTORS
Finish: electro-zinc plated, white.
Top plate in pressed steel-sheet.
Kingpin riveted to the top-plate.
Thermoplastic dust protection ring (water resistant).
Swivel fork in pressed steel-sheet.
Hardened steel balls.
Thermoplastic dust seal (water proof).
Balls retaining ring in pressed steel-sheet.
Self-locking nut.
