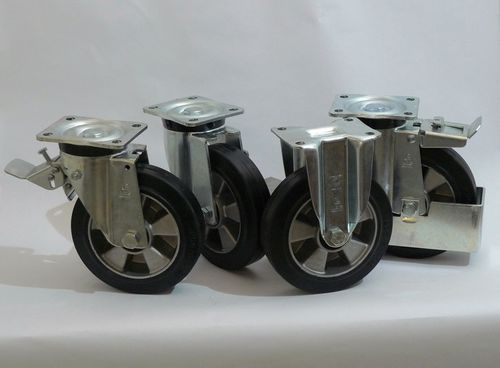

Wheel with solid tire ELASTIC + M40 seriesaluminumball bearingrubber
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Hub type
- ball bearing
- Tread material
- rubber
- Hardness
- Shore A
- Applications
- bearing, plate , sheet
- Other characteristics
- elastic
- Load capacity
Max.: 700 kg
(1,543 lb)Min.: 150 kg
(331 lb)- Diameter
Max.: 300 mm
(11.81 in)Min.: 100 mm
(3.94 in)- Tread width
Max.: 60 mm
(2.36 in)Min.: 40 mm
(1.57 in)
Description
ALUMINIUM CORE - VULCANIZED BLACK ELASTIC RUBBER.
Black elastic rubber coating, hardness 73±5 Shore A.
Core in die-cast aluminium alloy.
Excellent smooth and silent running; high abrasion resistance.
Temperature range: -20°C / +70°C (-4°F / +158°F).
Hub with: shielded precision ball bearings; standard roller bearing.
MEDIUM-HEAVY DUTY CASTORS
Finish: electro-zinc plated, white.
Top plate in pressed steel-sheet.
Kingpin riveted to the top-plate.
Thermoplastic dust protection ring (water resistant).
Swivel fork in pressed steel-sheet.
Hardened steel balls.
Thermoplastic dust seal (water proof).
Balls retaining ring in pressed steel-sheet.
Self-locking nut.
Catalogs
LAG General Catalogue 6.1
116 Pages
