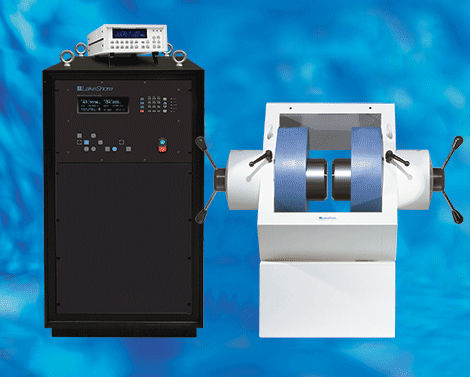

Magnetic measuring system

control

Features Ideal for user designed magnetic measurement systems Fields exceeding 3 T Stable field control with the Lake Shore Model 475 gaussmeter 4-, 7-, and 10-inch electromagnet configurations Continuously variable air gap electromagnets available Solid and optical access pole caps available Linear, bipolar, true 4-quadrant electromagnet power supplies The electromagnet field control platform (FCP) integrates hardware and firmware components to form a variable magnetic field platform that can be used independently or as the foundation for a user-designed magnetic measurement system. The FCPs include a Lake Shore electromagnet, a bipolar magnet power supply, a DSP gaussmeter with integrated field control firmware, and a gaussmeter Hall probe and holder. Lake Shore FCPs can be configured to accommodate specific user requirements based on magnetic field strength, field uniformity, sample size, and custom measurement applications. The platforms are ideally suited for integration into user-designed magnetic test systems for applications including magneto-optical studies, in-line annealing, Hall effect studies, susceptibility measurements, spin magnetic resonance demonstrations, B-H curves, and precision sensor calibration.
