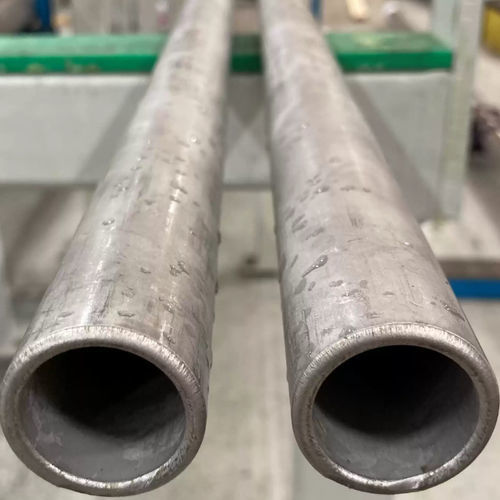

Alloy 825, often referred to as Incoloy 825 (where Incoloy is a trademark of Special Metals Corp), is a nickel-iron-chromium alloy with additions of molybdenum, copper and titanium (NiCr21Mo), supplied in the hot worked and annealed condition. The alloy achieves good mechanical properties from cryogenic to medium-high temperatures (5400C) and can be significantly strengthened if required through cold working.
The high nickel content ensures resistance to stress corrosion cracking, combined with molybdenum and copper to strongly resist reducing environments such as sulphuric and phosphoric acids. Chromium aids in the resistance to oxidising environments such as nitric acid and titanium inhibits intergranular corrosion, and overall resistance to pitting and crevice corrosion.
Specifications
BS 3076 NA16
2.4858
NFe 32 C 20 DU
NiCr 21 Mo
ASTM B425
UNS N00825
API 6CRA 825
Notes:
Tensile testing shall be carried out in accordance with ASTM A370 or EN10002-1
Minimum properties quoted (tested at room temperature in a longitudinal direction)
Testing performed on each melt of material per heat treatment batch
Key Features:
Readily formable and weldable
Applications:
Chemical process equipment
Pollution control systems and wet scrubbers
Waste heat recovery exchangers
Tanks, vessels and agitators
Nuclear reprocessing and handling
