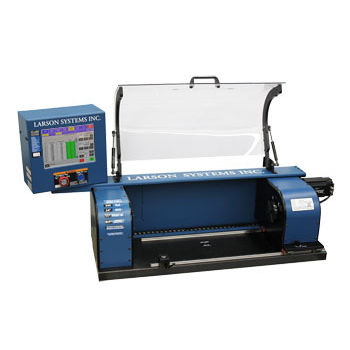

Torsion testing machine ATST

angle/torquemotorizedfor springs

The ATST is a motorized torque / angle tester that is available in six load ranges: 3, 25, 100, 200, 500 and 1,300 in-lb. Fast, quiet testing with closed loop servo drives. Achieve 30 second tool-less changeovers from type to type Built-in angle zeroing provides ± 0.1° setup accuracy every time Identical setups each time enhance repeatability Features Motorized operation Up to 24″ part length capability (11.5″ standard) Standard 11″ part Ø capability Standard 0.1° angle resolution 25 to 1,300 in-lb load capacities FLASH interface Smart interchangeable torque cartridges Interchangeable tooling Custom tooling or universal tooling options Deflection compensation Absolute zeroing Virtually unlimited data / program storage Digital calibration NIST traceable calibration Fatigue testing option 120 volt Whisper Drive servo motor on 200 in-lb system 240 volt single phase servo motor drive on 500 and 1,300 in-lb systems (NEMA 6-15 connector plug) Optional Features Extended bed Z-Axis Safety Features Test abort button (on-screen & remote) Full interlocked enclosure Software torque limits Emergency stop button Connectivity Ethernet port for network printing or PC based data / test program management USB for easy printing and software updates Automation interface Remote support / diagnostic capability via the internet
